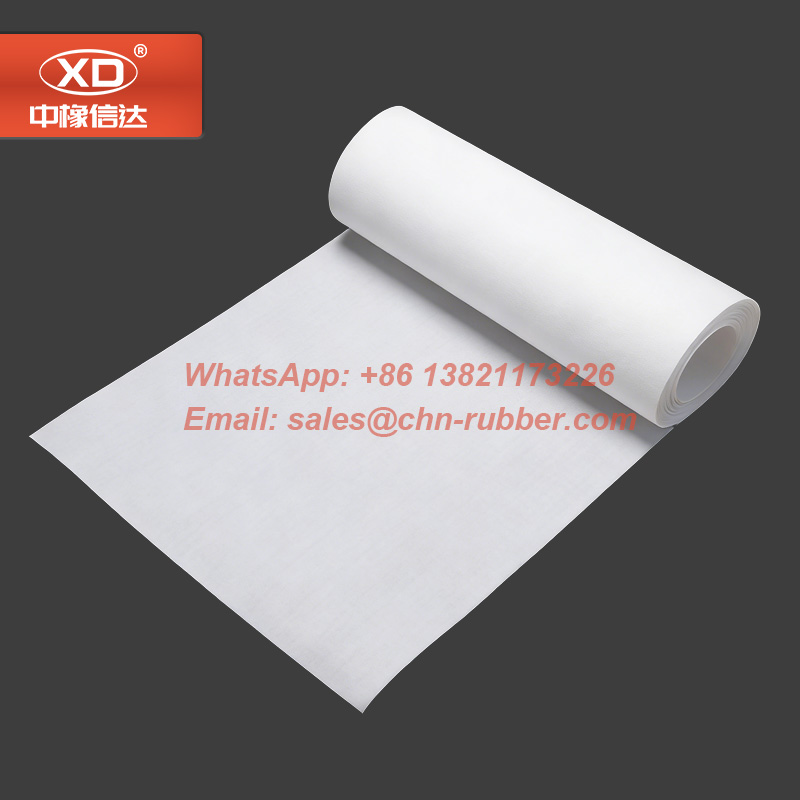

Filled polytetrafluoroethylene sheet PTFE rolls
High-quality virgin polytetrafluoroethylene sheet manufactured by precision skiving process. This polytetrafluoroethylene sheet offers outstanding chemical inertness, continuous service temperature from -180°C to +260°C, non-stick surface, and excellent dielectric properties. UV/weather resistant, virtually zero water absorption. Widely used for gaskets, seals, linings, slide bearings, electrical insulation and anti-corrosion applications.
Request a Sample and Quotation:
WhatsApp: +86-13821173226
Email: sales@chn-rubber.com
Filled polytetrafluoroethylene sheet is precision skived from PTFE resin compounded with high-performance fillers. This filled version significantly improves mechanical strength, wear resistance, creep resistance, and load-bearing capacity compared to unfilled PTFE, while still retaining excellent chemical resistance and low friction properties. Filled PTFE is the preferred material when higher mechanical performance and durability under load are required.
Key Advantages
- 1. Substantially higher tensile strength and compressive strength
- 2. Excellent wear resistance and reduced creep under load
- 3. Improved dimensional stability and rigidity
- 4. Good chemical resistance to a wide range of media
- 5. Low friction and self-lubricating surface
- 6. Better thermal conductivity (depending on filler type)
- 7. Suitable for high-pressure and dynamic applications
Polytetrafluoroethylene Sheet Data Sheet
| Item | Target |
| Density | 2.1-2.3g/cm³ |
| Tensile Strength | ≥15.0 |
| Ultimate Elonagtion | ≥150 |
| Voltage | 10 |
| Thickness/mm | Width/mm | Length/mm |
| 0.5-6 | 10-2000 | - |
| 7 | 10-1500 | 20000 |
| 8 | 10-1500 | 17000 |
| 9 | 10-1500 | 15000 |
| 10 | 10-1500 | 14000 |
| 12 | 10-1500 | 10000 |
Common Applications
- 1. High-load bearings, bushings and wear pads
- 2. Heavy-duty seals, gaskets and valve seats
- 3. Pump components and compressor parts
- 4. Slide plates and guide rails in machinery
- 5. Bridge bearings and structural sliding supports
- 6. Electrical insulators under mechanical stress
- 7. Chemical equipment requiring both strength and corrosion resistance

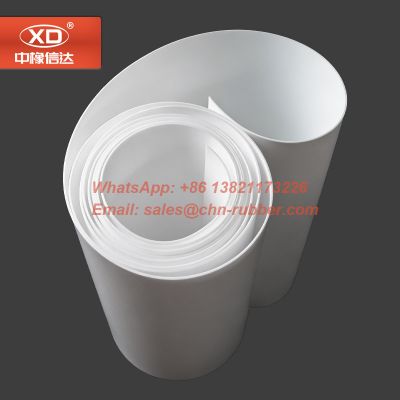

Skiving process provides smoother surface, better thickness uniformity, and improved flexibility compared to molded filled PTFE sheets, making it ideal for precision parts and medium-thickness applications.
- Color: Depends on filler (commonly black, gray, or off-white)
- Available in a wide range of thicknesses and sheet sizes
- Custom cutting, CNC machining, and fabrication services available
- Common filler options: glass fiber, carbon, graphite, bronze etc.
