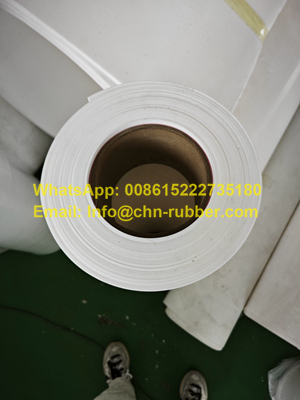

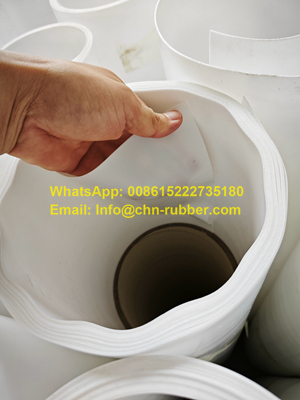

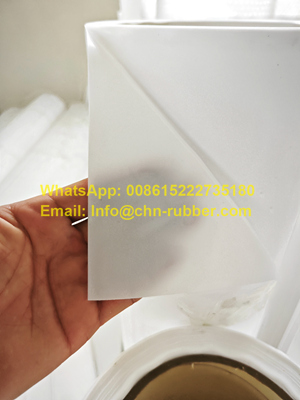

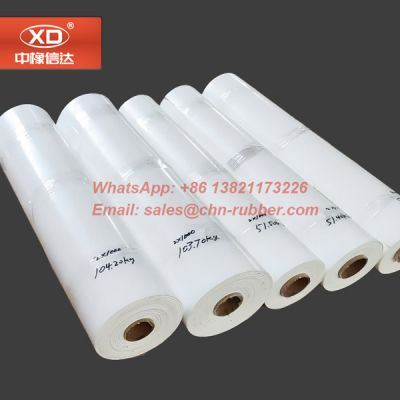

Expanded PTFE Sheet
- 1/1
Expanded PTFE Sheets | High-Performance ePTFE Sheet Stock
Hebei Xinda Sealing Material Co., Ltd. is a premier, factory-direct supplier specializing in high-density ptfe expanded sheet materials designed for severe industrial sealing environments. Formed via a highly controlled stretching process that creates a multi-directionally fibrillated microstructure, our premium eptfe sheet series exhibits exceptional compressibility and extreme structural toughness. This specialized material allows process plants to achieve a reliable seal on misaligned, scratched, or fragile flange configurations without requiring excessive bolt loads.
 |
 |
 |
Engineered for Total Impermeability & Anti-Creep Performance
While standard rigid fluoropolymer plates are prone to cold-flow deformation under constant loads, our advanced ptfe expanded sheet matrix eliminates this mechanical compromise. Under initial compression, its highly porous internal micro-fibers compress vertically into a dense, solid, and completely impervious structural barrier. This barrier locks out aggressive chemical fluids, severe steam, and volatile gases, keeping systems leak-free and avoiding the chronic downtime caused by brittle alternatives that split under system vibration.
- Versatile Thickness Range: Available in precise continuous roll or sheet formats starting from 0.5 mm for low-clearance narrow gaps up to 10 mm for heavy, highly warped flange faces.
- Industrial Width Capacities: Manufactured in wide configurations reaching up to 1800 mm, allowing your workshop to cut large-diameter monolithic gaskets without weak welded joints.
- Optimized Sealing Density: Engineered at a controlled density profile of approximately 0.7 g/cm³ to 0.9 g/cm³, ensuring excellent compressibility combined with high recovery parameters.
- Broad Operating Temperature: Maintains full flexibility and sealability across a broad operational boundary spanning from -180°C up to continuous heat profiles of +260°C.
Streamlined Gasket Fabrication & Chemical Resistance
Our 100% pure virgin eptfe sheet stocks offer a clean, no-fuss cutting routine. They handle beautifully under standard manual punch kits or automated CNC waterjet cutting tables, yielding razor-sharp edges without edge fraying. Composed entirely of unadulterated fluoropolymer without chemical binders or added fillers, these sheets exhibit total universal chemical resistance (pH 0-14), making them perfectly safe for food-grade lines, high-purity pharmaceuticals, and highly corrosive acid processing systems.
Request an ePTFE Sheet Sample Kit & Wholesale Price Matrix
Need validation samples for cutting tests, tailored geometric thicknesses, or complete container wholesale pricing concessions? Contact our technical export desk today for direct manufacturer support.
Looking for On-Site Spool Ribbons or Rigid High-Load Panels?
To optimize your fluid management system: if your layout requires narrow, self-adhesive continuous ribbons for rapid pipeline repairs rather than flat panels, please redirect to our Expanded PTFE Joint Sealant Tapes directory. If your design demands heavy, rigid structural components for high-pressure CNC machining, explore our high-density Virgin Molded PTFE Sheets collection.
