Expanded PTFE Sealing Tape | High-Performance ePTFE Gasket Tape

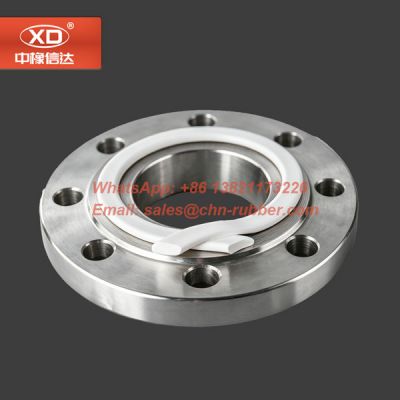

Hebei Xinda Sealing Material Co., Ltd. manufactures professional-grade expanded ptfe sealing tape, engineered as a premium, highly conformable form-in-place sealing solution for large-diameter flanges and complex sealing surfaces. Produced from 100% pure multi-directionally expanded PTFE, this heavy-duty ptfe gasket tape combines the universal chemical inertness of virgin fluoropolymers with the high compressibility required to achieve a bubble-tight seal on imperfect, scarred, or fragile sealing faces without requiring excessive bolt loads.
Why Engineers Trust Our ePTFE Gasket Tape Matrix
Unlike low-grade joint sealants that easily slide, creep, or degrade over time, our premium expanded ptfe tape series features a highly cross-linked, micro-porous fibrous structure. Under initial compression, these interlocked fibers compress into a solid, completely impermeable structural barrier that seals against high-pressure gases, steam, and volatile fluids, eliminating the chronic downtime caused by rigid alternatives.
- Easy Peel-and-Stick Setup: Features a high-quality, temperature-resistant self-adhesive backing strip that allows for quick and secure positioning on vertical or overhead flanges without shifting or dropping mid-shift.
- Universal Flange Conformability: The soft, flexible microstructural fibers effortlessly fill deep pits, tool marks, and scratches on delicate glass-lined, plastic, FRP, or metallic flanges.
- Zero Mechanical Cold Flow: Our engineered eptfe gasket tape structural lattice resists creep and cold-flow deformation, maintaining excellent long-term torque retention under fluctuating pressure profiles.
- Universal Chemical Protection: Composed of 100% unadulterated substance without added binders or fillers. Offers full chemical resistance (pH 0-14) and operates reliably from cold -180°C up to continuous temperatures of +260°C.
Ideal for Critical Industrial Applications & Diverse Industries
This versatile expanded ptfe sealing tape serves as a critical asset for fluid management and asset protection across severe manufacturing environments. It is widely utilized for sealing heavy heat exchangers, large industrial vessel manways, tank covers, glass-lined reactor flanges, and large-diameter volatile pipeline junctions. Our products provide predictable execution across multiple primary sectors:
- Chemical Processing Plants: Safe containment of highly aggressive volatile acids, caustics, and hazardous organic solvents.
- Food & Beverage Processing: 100% pure contamination-free compliance for sanitary production lines.
- Pharmaceutical & Biotech Manufacturing: Inert performance that prevents batch contamination or extractable reactions.
Standard Production Dimensions & Technical Baselines
Our fully integrated manufacturing plant supplies continuous ePTFE joint sealant spools across a wide range of standard dimensional configurations:
| Technical Parameter | Factory Technical Execution Baseline |
| Width Profiles | From slim 3 mm widths for small instrument fittings, up to 10 mm+ wide ribbons for large diameter vessel covers and dust ducting systems |
| Thickness Spectrum | Available from 1.5 mm up to 10 mm thicknesses to accommodate various flange gap tolerances |
| Material Density | Controlled density profile of approximately 0.7 g/cm³ to 0.85 g/cm³, ensuring excellent compressibility combined with high recovery characteristics |
| Thermal Operational Range | Maintains full flexibility and sealing performance from -100°C up to continuous temperatures of +280°C |
| Compliance Tracker | SGS, REACH, and RoHS 2.0 criteria |
Request Free ePTFE Gasket Tape Samples & Bulk Factory Pricing
Looking for specific spool dimensions, custom ribbon widths, or volume container-load wholesale pricing concessions? Send your drawing sizes to our technical export office for a rapid commercial quotation.
Looking for Large-Format Flat Sealing Panels?
To fully optimize your plant inventory: if your maintenance cutting workshop requires large-format flat scaling panels or die-cut geometric profiles instead of continuous ribbons, please redirect to our Expanded PTFE Sheets directory. For heavy, rigid solid parts designed for high-load CNC machining, browse our high-density Virgin Molded PTFE Sheets collection.
