PTFE Bar & Rod
- 1/1
PTFE Bar & Rod: Industrial Manufacturing & Wholesale Supply
As one of the professional ptfe bar manufacturers, Hebei Xinda Sealing Material Co., Ltd. specializes in custom factory processing of high-performance polytetrafluoroethylene bar and solid rod profiles. We combine decades of polymer engineering expertise with advanced computer-controlled sintering technology to serve as premier ptfe rod suppliers for global machining shops, chemical valve manufacturers, and OEM engineering firms.
Our heavy-duty ptfe round rod stock is manufactured using premium virgin resins, ensuring near-universal chemical inertness, superior dielectric strength, and an ultra-low friction coefficient. These properties make our solid profiles the ideal raw materials for complex precision components that operate under aggressive media and extreme temperatures.
We supply two primary types of PTFE rod profiles to match your machining demands:

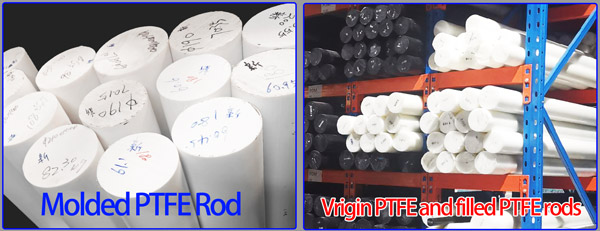

- Ram Extruded PTFE Rod: Engineered as a machining grade ptfe rod optimize for high-volume automated CNC lathe feeding. This process provides excellent straightness, consistent material structure, and tight continuous diameter control (typically from 5mm up to 330mm).
- Compression Molded PTFE Bar: Tailored for heavy-duty structural components, these high-density compression molded ptfe bar stock profiles are available in massive custom diameters and short billets, offering optimized structural integrity with zero internal voids.
Whether your application requires 100% pure virgin PTFE resin or specialized filled formulations (reinforced with Glass Fiber, Carbon, Bronze, or Graphite), our custom profiles maintain optimal dimensional stability from cryogenic levels up to +260°C continuous service. Contact our technical sales team for custom wholesale contract pricing, product datasheets, and international compliance certificates.
PTFE Bar & Rod Technical Parameter Comparison
| Technical Specifications | Ram Extruded PTFE Rod | Compression Molded PTFE Bar |
| Production Process | Continuous Ram Extrusion | Hydraulic Compression Molding |
| Diameter Range Available | 5 mm – 330 mm | 300 mm – 500 mm (Custom Large Diameters) |
| Standard Supply Length | 1000mm / 2000mm / Continuous Coils | 100mm / 200mm / 300mm Billets |
| Apparent Material Density | 2.10 – 2.30 g/cm³ | 2.15 – 2.30 g/cm³ |
| Tensile Strength (Min.) | ≥ 15 MPa | ≥ 20 MPa |
| Ultimate Elongation (Min.) | ≥ 150% | ≥ 150% |
Primary Machining Industry Applications
Our solid fluoropolymer rod and bar stocks serve as high-purity machining blanks across diverse technical sectors:
- Chemical Processing: CNC machined valve seats, internal pump packings, acid-resistant liners, chevron seals, and connectors.
- Electrical & Electronics: High-voltage insulators, terminal RF connectors, and high-frequency dielectric semiconductor components.
- Mechanical Engineering: Heavy-load self-lubricating sleeve bearings, precision piston rings, thrust washers, and slide strips.
- Aerospace & Military: Lightweight backup rings, cryogenic sealing components, and high-temperature hydraulic seals.
Why Partner with Hebei Xinda for Your PTFE Bar & Rod Supply?
- When you source directly from specialized ptfe bar manufacturers, you leverage advanced material sciences that guarantee stability during high-speed machining processes:
- Stress-Relieved Annealing Process: All our molded and extruded profiles undergo strict thermal stress-relieving cycles. This prevents material deformation, twisting, or bending during high-speed automatic CNC turning.
- Advanced Custom Compounding: We can modify mechanical features by blending raw fluoropolymer resins with custom percentages of glass fiber, carbon powder, bronze shavings, or graphite to custom-tailor load capability.
- Traceable International Quality: Our direct factory production is certified under ISO protocols, ensuring 100% material traceability and strict adherence to FDA, REACH, and RoHS 2.0 directives.
