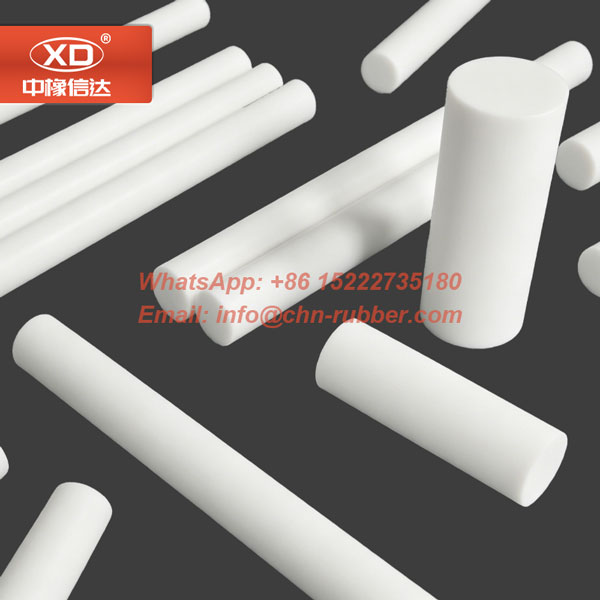

Industrial Premium PTFE Bar Stock | Extruded & Molded Solid Rods

Industrial engineering workshops, chemical containment plants, and electrical component factories face ongoing challenges when choosing robust plastic materials that stay stable under extreme operating conditions. Standard industrial polymers often fail due to sudden chemical attacks, structural softening at high temperatures, or dielectric breakdown under electrical loads. Our comprehensive factory-direct ptfe bar selection offers an ideal, high-durability solution to these performance challenges. By operating specialized manufacturing tracks for both continuous ram extrusion and hydraulic compression molding, we provide structural shapes that help machining centers fabricate precise components with excellent mechanical reliability.

Molded vs. Extruded PTFE Bar Stock: Process Alignment and Sizing Framework

To achieve cost efficiency and perfect physical performance in your finished parts, it is critical to align your order with the correct production method. Our factory produces ptfe bar stock utilizing two separate mechanical systems designed around the specific dimensional and operational requirements of your end components.

Technical Parameters & Material Performance Profiles

Every run of our virgin ptfe bar stock undergoes comprehensive testing against precise mechanical, thermal, and electrical metrics within our ISO 9001 quality system. This data reflects the high purity and structural uniformity of our solid fluoropolymer rods.

• Apparent Material Density: 2.10 to 2.30 g/cm³, indicating thorough particle fusion and zero internal micro-porosity.
• Tensile Strength Capability: ≥ 15.0 MPa / 20.0 Mpa, providing excellent resistance to tearing and physical stress during high-speed cutting.
• Ultimate Elongation Threshold: ≥ 150%, allowing parts to flex and adapt under severe pressure loads without cracking.
• Continuous Temperature Range: From -180°C up to +260°C, ensuring stable long-term operation under both extreme cryogenic conditions and high-temperature steam lines.

Overcoming Common Machining Failures: Eliminating Distortion and Deep Core Cracks

In automated milling workshops, production slowdowns are frequently caused by quality inconsistencies in low-grade fluoropolymer stock. If a solid ptfe bar contains hidden core cracks or suffers from uneven density variations due to poor sintering control, the material can warp, expand, or split during fast carbide turning. This defect ruins the surface finish of your custom parts, creates excessive material scrap, and causes expensive machine downtime.

Our factory-processed ptfe bar stock completely prevents these costly machining issues. We use extended, multi-zone sintering ovens with gradual thermal ramp controls to slowly cool the fused polymers. This meticulous cooling balances internal molecular pressures, providing uniform density from the outer skin to the core. As a result, your CNC lathes can run at high speeds with clean chip control and excellent dimensional accuracy.

Direct Factory Manufacturing Advantage: Trusted Supply for High-Volume Distributors

Established in 2000 as an integrated manufacturer combining advanced production capabilities with global trade services, we supply international engineering distributors and volume buyers with premium fluoropolymer stock that aligns with rigorous global benchmarks. Our factory features multiple automated horizontal ram extruders and high-tonnage hydraulic molding systems to fulfill bulk wholesale contracts within short production timelines.

By supervising the full production workflow internally—from initial incoming resin checking to final centerless grinding and quality inspection—we maintain exceptional cross-batch consistency. We keep a deep inventory of standard metric and fractional sizes ready for fast dispatch, while also producing custom composite rods filled with glass fiber, carbon, graphite, or bronze to combat mechanical cold flow under load. Every single shipment is verified under our strict ISO 9001 framework, giving you peace of mind when it arrives at your warehouse.

Engineering Reference & Core Application FAQ
