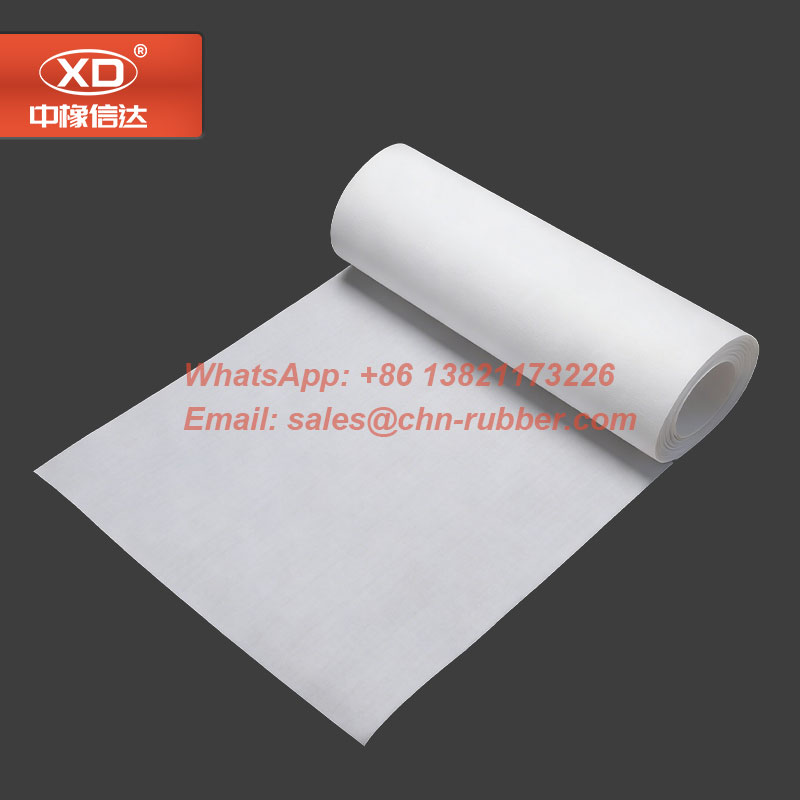

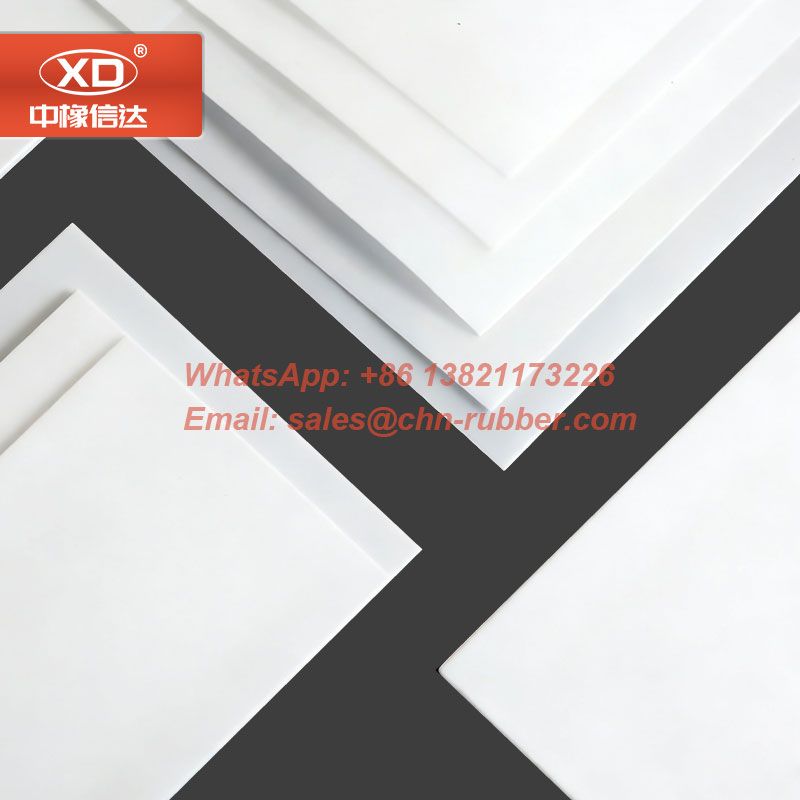

Gasket PTFE material is manufactured through both molded compression forming and precision skiving processes, ensuring dimensional stability and uniform structure across the sheet. Molded PTFE blocks provide dense and consistent raw material structure, while skived sheets allow for wide-width continuous rolls suitable for gasket cutting, sealing conversion, and industrial insulation applications.
PTFE offers outstanding chemical resistance against acids, alkalis, solvents, and aggressive media. Its low friction coefficient and non-stick surface make it an ideal material for static sealing components under demanding operating conditions.
Skived PTFE Sheet Data Sheet
| Test Item | Unit | Target |
| Density | g/cm³ | 2.1-2.3 |
| Tensile Strength | Mpa | ≥15.0 |
| Ultimate Elongation | % | ≥150 |
| Voltage | Kv/mm | 10 |
Product Specifications
| Thickness(mm) | Width(mm) | Length(mm) |
| 0.5-6 | 10-2000 | Unlimited |
| 7 | 10-1500 | 20000 |
| 8 | 10-1500 | 17000 |
| 9 | 10-1500 | 15000 |
| 10 | 10-1500 | 14000 |
| 12 | 10-1200 | 10000 |
PTFE sheets in irregular or non-listed sizes are available for custom fabrication to meet specific customer requirements.
PTFE Plastic Sheet Data Sheet
| Test Item | Unit | Target |
| Density | g/cm³ | 2.1-2.3 |
| Tensile Strength | Mpa | ≥15.0 |
| Ultimate Elongation | % | ≥150 |
Product Specifications
Thickness: 3mm ~ 300mm
Width: 20 ~ 1200mm
Length: 1200mm
Available in a wide range of thicknesses, our PTFE sheets are suitable for:
- Industrial gasket fabrication
- Flange sealing systems
- Chemical processing equipment
- High-temperature insulation applications
Both molded plates and skived rolls can be supplied according to application requirements.
