Direct Factory Virgin PTFE Skived Sheet & Continuous Rolls
We manufacture premium ptfe skived sheet and continuous roll products produced strictly from 100% un-reprocessed virgin PTFE resins. Utilizing precision cylindrical billet compression molding and high-speed lathe skiving machinery, our continuous skived sheet materials deliver uniform thickness tolerances, zero porosity, and superior surface smoothness. Designed for chemical vessel anti-corrosion linings, high-voltage electrical insulation, and precision die-cut gasket fabrication, our virgin PTFE skived film and rolls maintain outstanding tensile strength and electrical dielectric properties across continuous thermal boundaries from -180°C to +260°C.
Virgin PTFE Skived Supply Formats
Explore our standard skived film rolls, flat sheet cuts, and bonding-prepared surface treatments.

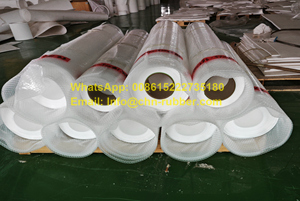

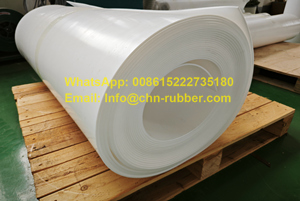

1. Continuous Thin Skived Rolls / Films
Flexible, high-dielectric continuous skived sheet rolls wound onto cardboard cores for automated die-cutting or continuous tank lining equipment.
2. Flat Cut Virgin PTFE Skived Sheets
Medium gauge pre-cut flat ptfe skived sheet panels designed for stamping chemical gaskets, slide pads, and mechanical barrier components.
Virgin PTFE Skived Sheet Technical Parameters
Verified mechanical and electrical properties tested to ASTM standards.
| Property Parameter | Test Standard | Virgin Skived Value | Engineering Advantage |
|---|---|---|---|
| Apparent Density | ASTM D4894 | 2.10 - 2.30 g/cm³ | Pin-hole free, dense non-porous structure |
| Tensile Strength | ASTM D4894 | ≥ 18.0-20.0 MPa | High structural toughness under tension and flexing |
| Ultimate Elongation | ASTM D4894 | ≥ 250% - 350% | Excellent flexibility for complex vessel lining contours |
| Dielectric Strength | ASTM D149 | ≥ 22.0 - 24.0 kV/mm | Superior high-voltage electrical breakdown resistance |
| Continuous Operating Temp | Thermal Boundary | -180°C to +260°C | Maintains integrity in cryogenic and high-heat environments |
| Chemical Inertness | pH Spectrum | pH 0 - 14 Universal | Immune to strong acids, caustics, and industrial solvents |
Key Performance Advantages of Virgin PTFE Skived Sheets
Target Industrial Application Fields
Essential high-purity sealing and lining material across global industries.
Inquire Bulk Wholesale Pricing for Virgin PTFE Skived Sheets & Rolls
Looking for direct factory pricing on continuous PTFE skived rolls, custom cut-to-size sheets, or sodium-etched bondable films? Contact our engineering sales desk for fast quotations and material samples within 24 hours.
