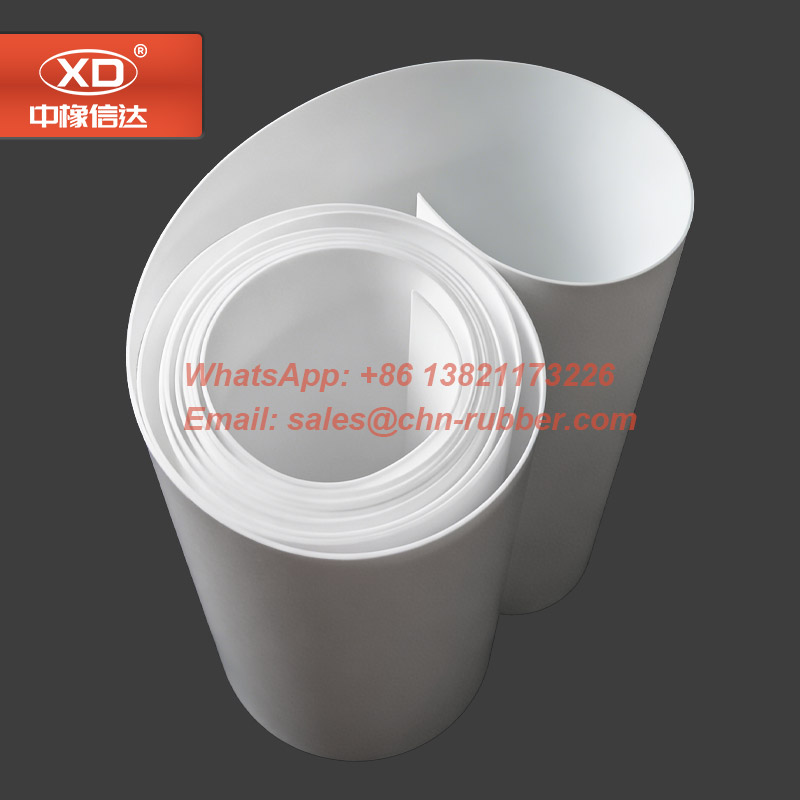

3mm - 300mm Skived PTFE filled or 100% virgin sheet

High-performance skived ptfe is precision skived from 100% virgin Polytetrafluoroethylene (PTFE) resin or filled add ptfe materials, delivering superior uniformity and surface finish compared to molded sheets. This skived ptfe is widely recognized as one of the most versatile and reliable engineering plastics in the industry.

 Key Features

1. 1. Thickness: 3mm
2. 2. Temperature Range: -180°C ~ +260°C continuous use
3. 3. Excellent Chemical Resistance: Inert to nearly all acids, bases, solvents, and corrosive chemicals
4. 4. Self-lubricating & non-stick surface
5. 5. Superior Electrical Insulation: High dielectric strength
6. 6. Additional Benefits: Weather/UV resistant, non-toxic, anti-aging, low water absorption

 Technical parameters

 Common Applications

1. 1. Gaskets, seals, and valve packing
2. 2. Chemical tank & pipe linings
3. 3. Slide bearings, wear pads, and guide rails
4. 4. Electrical insulation components
5. 5. Food processing & pharmaceutical equipment (food-grade available)
6. 6. Expansion joints and bridge bearings
7. 7. Laboratory apparatus and medical devices

Skived sheets provide tighter thickness tolerance, smoother surface, and better flexibility than molded PTFE sheets — especially ideal for 3mm thickness applications requiring precision.

Need a different thickness, filled PTFE (glass, carbon, bronze), or custom fabrication? Contact us for fast quotation and samples.
