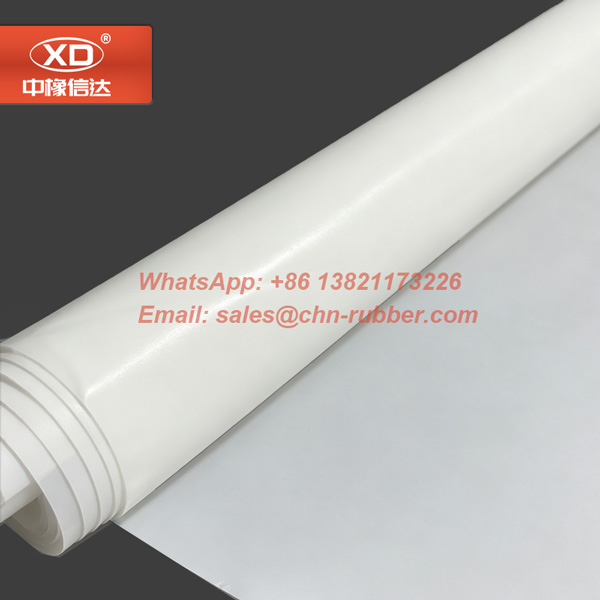

Premium Virgin PTFE Sheet High-Performance Industrial Grade
- Material Integrity: Manufactured from 100% pure virgin PTFE (Polytetrafluoroethylene) resin with zero reprocessed material fraction.
- Thermal Endurance: Operates reliably across a massive continuous temperature threshold spanning from -180°C up to +260°C.
- Universal Chemical Inertness: Total resistance to almost all aggressive acids, hazardous alkalis, corrosive solvents, and volatile petroleum fluids.
- Optimal Friction & Insulation: Offers an exceptionally low kinetic friction coefficient (0.05 to 0.08) alongside superior dielectric insulation strength.
- Precision Tolerances: Strict gauge control and thickness uniformity to eliminate risk of structural failure during severe-duty gasket cutting or tank lining.
Carrie Kang (Sales 2)
Mobile Phone：+86 13821173226
WhatsApp: 86 13821173226
E-mail: sales@chn-rubber.com
High-Performance Premium PTFE Sheet: Virgin Grade Skived Rolls & Molded Plates
Our raw fluoroplastic stocks deliver complete operational reliability under aggressive pressure, extreme temperatures, and volatile environments. Optimized for severe-duty gasket cutting, custom machining, and industrial barrier lining applications globally.
Request A Factory QuoteProduct Overview & Engineering Integrity
Our premium PTFE sheet represents the pinnacle of advanced fluoroplastics manufacturing, engineered specifically to satisfy the strict demands of global B2B industrial engineering sectors. Utilizing the highest grade of raw virgin polytetrafluoroethylene resins, these high-density sheets ensure complete structural homogeneity and uniform material properties. This strict material baseline guarantees zero batch contamination, making them the definitive choice over inferior mechanical-grade alternatives that often include recycled filler fractions.
Whether deployed as an anti-corrosion barrier in chemical processing facilities or as a high-insulation structural divider in electrical arrays, each premium PTFE sheet exhibits near-total chemical inertness, high tensile reliability, and an exceptionally smooth, non-stick surface finish. The inherent engineering stability allows components to operate seamlessly under severe mechanical and environmental stresses without cracking, warping, or degrading over long operational lifespans.
Advanced Manufacturing Formats: Skived Rolls vs. Molded Slabs
To support a wide spectrum of cross-industry applications, our production facilities run two distinct manufacturing lines, delivering PTFE configurations optimized for specialized fabrication techniques:

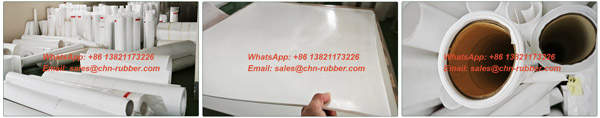

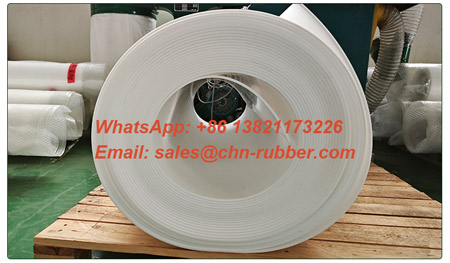

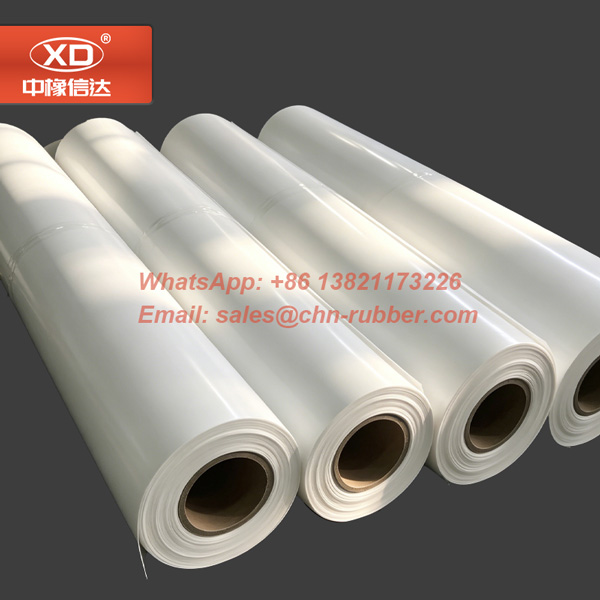

Precision Skived PTFE Sheet & Rolls
Our continuous skived configuration is processed by mounting cylindrical, compression-molded PTFE billets onto high-precision horizontal CNC peeling lathes. This advanced slicing methodology allows for extremely thin, uniform, and flexible material sheets ranging from thicknesses of 0.5 mm to 12 mm. We feature continuous extra-wide skived configurations extending up to a maximum width of 4000 mm (4 meters). This ultra-wide format drastically minimizes the need for joint-welding, layout seams, or overlapping bonding points during large-scale industrial tank linings, vessel protective coverings, and industrial conveyor belt fabrications.

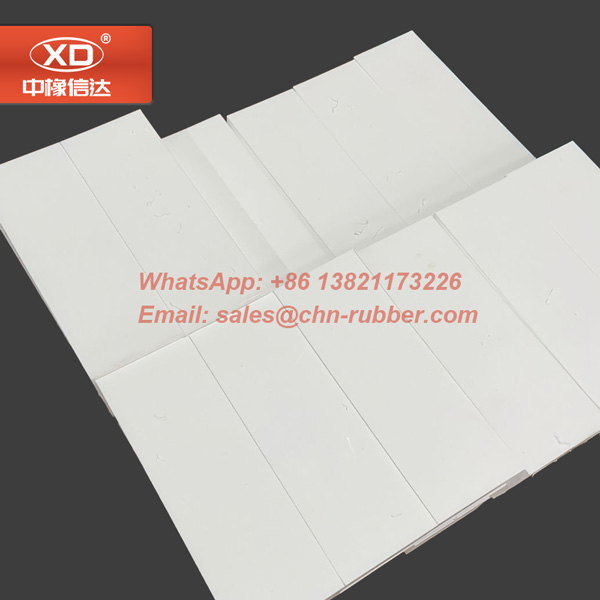

Heavy-Duty Molded PTFE Plates

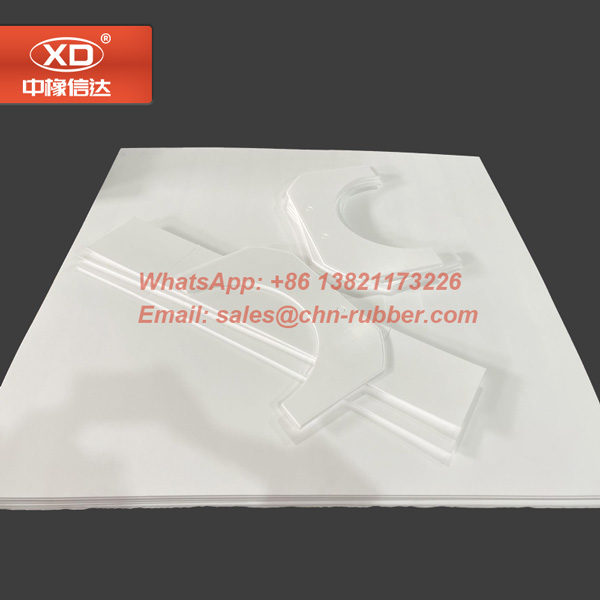

For industrial applications requiring immense structural rigidity, high load-bearing capacity, and thick cross-sections, our molded plates provide the ultimate solution. Manufactured through static hydraulic compression molding followed by computer-regulated, slow-atmosphere thermal sintering cycles, these configurations range in thickness from 3 mm up to 300 mm. These rigid slabs feature superior isotropic mechanical performance and high dimensional stability, providing an ideal substrate for custom machining into precise sealing rings, industrial slide bearings, chemical valve seats, and robust wear strips.
Technical Specification & Performance Verification
Every batch of our PTFE sheet undergoes rigorous quality assurance validation. The values detailed in the reference table below reflect verified parameters tested in accordance with international standard protocols:
| Physical Property Specification | Testing Protocol Baseline | Verified Performance Metric (Molded) | Verified Performance Metric (Skived) |
| Apparent Density Range | ASTM D792 | 2.10 - 2.30 g/cm³ | 2.10 - 2.30 g/cm³ |
| Minimum Tensile Strength | ASTM D638 | ≥ 15.0 MPa (Ultimate) | ≥ 15.0 MPa (Ultimate) |
| Ultimate Elongation at Break | ASTM D638 | ≥ 150 % | ≥ 150 % |
| Dielectric Strength (0.5mm Thickness) | ASTM D149 | - | ≥ 10 kV/mm |
| Continuous Operational Temperature | ASTM D648 | -180°C to +260°C | -180°C to +260°C |
| Coefficient of Friction (Kinetic) | ASTM D1894 | - | 0.05 - 0.08 |
| Chemical Resistance Index | - | - | Inert to all standard acids, alkalis, and solvents |
* For reference only; please contact us for actual data.
Global Application Profiles & Field Deployment
Due to the exceptional synergy of chemical resistance, thermal stamina, and dry-lubrication properties, our PTFE sheet stock is actively exported to major heavy-industrial centers across America, Latin America, Europe, and Southeast Asia. Key processing applications include:
- Chemical, Oil & Gas Processing: Fabrication of robust corrosion-resistant gaskets, valve seal components, bridge slide bearings, and heavy-duty liners for processing columns, reactors, and pipelines.
- Mechanical & Structural Engineering: Low-friction slide elements, expansion pads, wear-resistant track guides, and machinery slide plates used in heavy construction.
- Electrical Engineering & Electronics: High-temperature dielectric insulation barriers, spacer components, insulation wraps, and substrate bases for high-frequency electronics.
- Food & Pharmaceutical Manufacturing: FDA-compliant non-stick wear plates, high-purity equipment lining modules, and sterile fluid transport gaskets. (FDA testing can be performed upon request.)

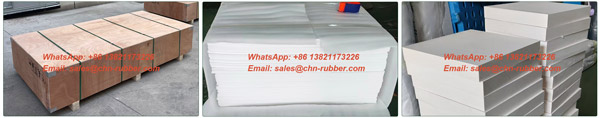

Quality Assurance & Global Maritime Packaging
We maintain rigid gauge and thickness tolerance verifications across the entire surface layout of every PTFE sheet prior to leaving our shipping docks. This zero-defect standard guarantees absolute safety and simple installation when our materials are cut or stamped into specialized profiles. For bulk export distribution, sheets are bound securely in moisture-barrier shrink wraps and packaged inside heavy-duty, reinforced seaworthy wooden crates. This robust packing method isolates the products from internal friction, surface scuffing, or edge deformation during long-distance maritime freight operations.
Global Trade Procurement & Sales Consultation
For customized dimensional inquiries, custom material compounding (such as carbon, glass fiber, or bronze-filled modifications), or to request formal bulk container pricing lists, please connect directly with our international export channel execution management matrix.
Primary Contact Officer: Carrie Kang (Global Export Sales)
Mobile Phone：+86 13821173226
WhatsApp: 86 13821173226
E-mail: sales@chn-rubber.com
Our engineering support infrastructure ensures perfect operational compatibility with international baseline technical frameworks, including full structural alignment with ASTM, ISO, GOST and regional regulatory specifications.
