High-Precision Thin PTFE Sheet Rolls Premium 1mm Fluoropolymer Plastic
Product Attributes :
Secure Dielectric Purity with Micro-Calibrated Thin PTFE Sheet Stock
CNC-machined from zero-recycle pure fluoropolymer resins, our specialized ptfe sheet 1mm profiles prevent pinhole defects and thickness variances. This ultra-flat film unrolls cleanly on automated stamp manufacturing lines, providing an uncompromised shielding barrier across complex high-frequency electronic isolation setups, reactive cleanroom environments, and extreme chemical storage tank interior facings.
- Micron-Level Gauge Precision: Tight manufacturing control ensures perfect thickness consistency for high-speed automatic die-cutting.
- Elite High-Voltage Shielding: Pure virgin molecular structure yields excellent dielectric breakdown resistance per millimeter.
- Direct Manufacturer Log: Order wholesale direct from our production plant floor to eliminate broker surcharges and receive fully traceable batches.
Kathery Cui (Sales 1)
Mobile Phone：+86 15222735180
WhatsApp: 86 15222735180
E-mail: info@chn-rubber.com
Product Description
Thin PTFE Sheet Engineering Data Metrics
| Evaluated Material Property | Measurement Unit | Target Standard Value |
| Material Density Coefficient | g/cm3 | 2.10 - 2.30 |
| Ultimate Mechanical Tensile Resistance | Mpa | ≥ 15.0 |
| Elongation Tolerance at Rupture | % | ≥ 150 |
| Dielectric Voltage Breakdown Barrier | Kv/mm | 10 |
Thin-Gauge Dimensional Configuration Availability
| Thickness Configuration (mm) | Master Width Range (mm) | Standard Continuous Length (mm) |
| 0.5 to 6.0 | 10 to 2000 | Continuous Roll / Unlimited |
| 7.0 | 10 to 1500 | 20,000 |
| 8.0 | 10 to 1500 | 17,000 |
| 9.0 | 10 to 1500 | 15,000 |
| 10.0 | 10 to 1500 | 14,000 |
| 12.0 | 10 to 1200 | 10,000 |
*Note: PTFE sheets in irregular or non-listed sizes are available for custom fabrication to meet specific customer requirements.
Advanced Calibration of 1mm Thin Fluoropolymer Roll Formats

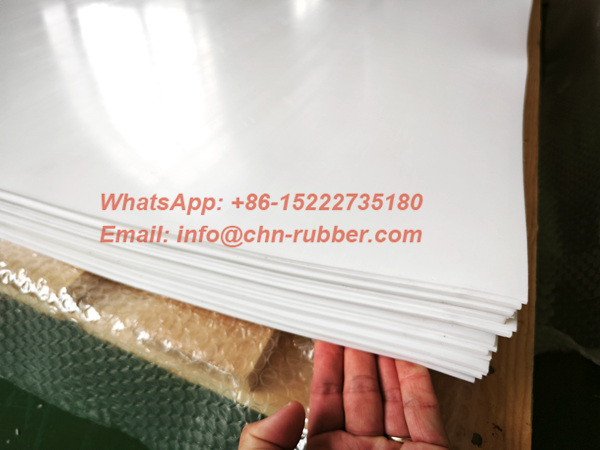

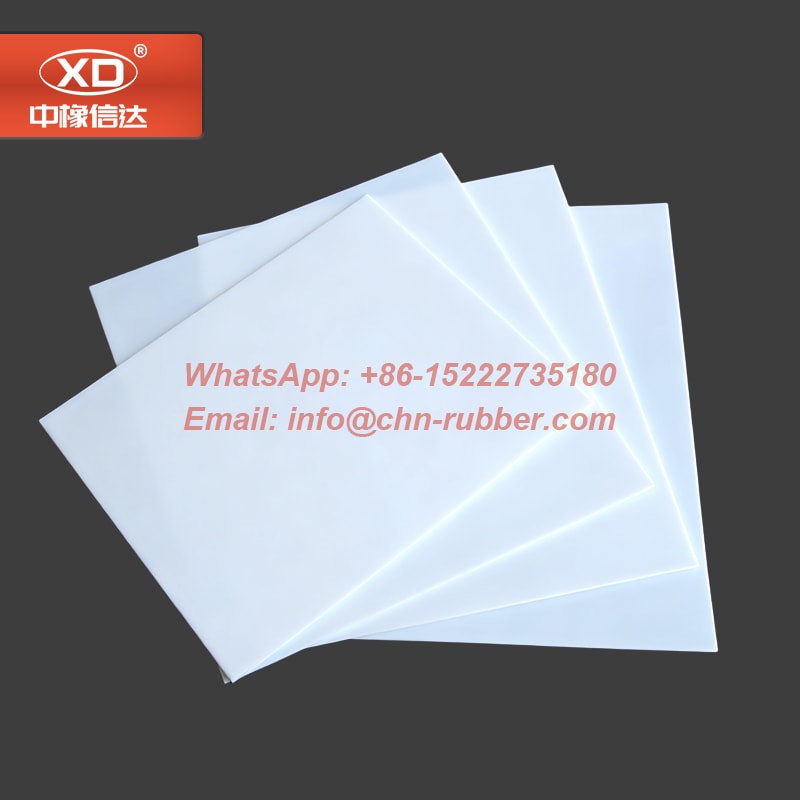

1mm PTFE plate with a smooth surfaceThis precise fabrication system eliminates common industry issues such as surface micro-voids, pinholes, and thickness unevenness. Procurement professionals can easily route our ultra-thin rolls through high-speed automated die-cutting machinery. The material stamps cleanly with sharp, reliable edges, significantly cutting scrap rates during the fabrication of thin mechanical washers, chemical gaskets, and electronic insulation components.
Critical Engineering Deployments for Thin-Gauge Membranes

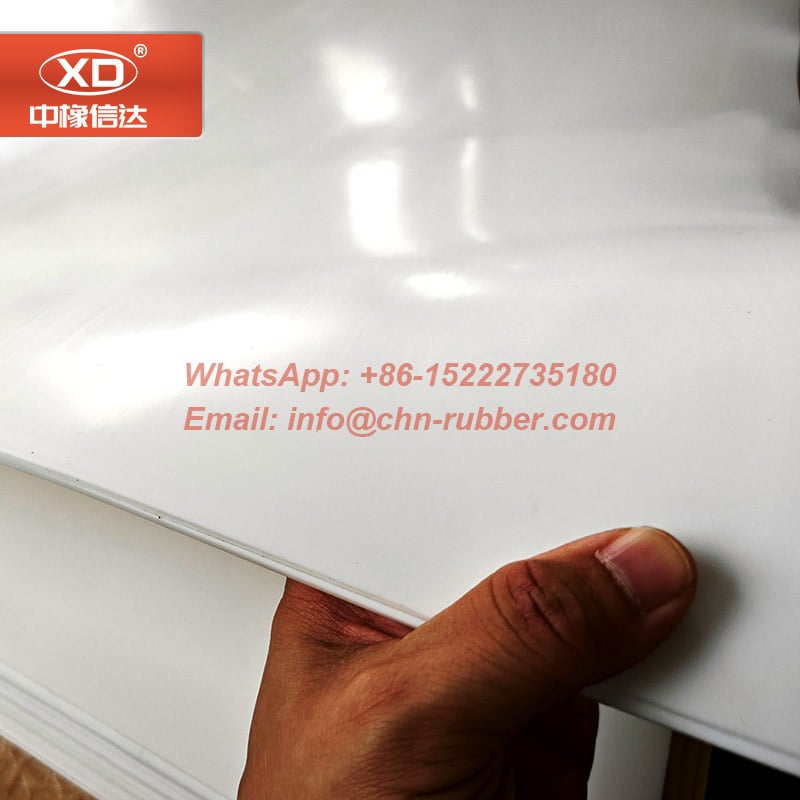

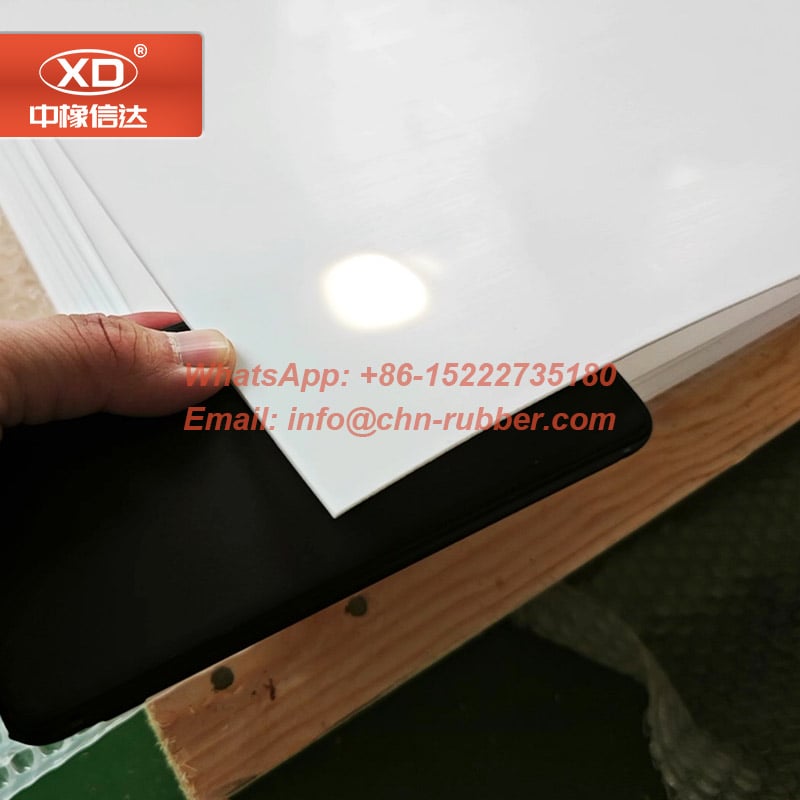

Premium Grade Thin Membrane Inspection1. High-Precision Gasket Fabrication: Ideal for stamping ultra-thin, chemical-resistant gaskets and high-temperature seals used in aggressive fluid transport joints and pharmaceutical pump housings.
2. Chemical Protection Liners: Deployed as protective, corrosion-proof barriers for chemical tanks, ductwork, and laboratory surface faces exposed to hot acids and aggressive solvents.
3. Dielectric Insulation Layers: Acts as a reliable insulating material for high-frequency capacitors, transformers, and electronic circuitry layouts requiring extreme voltage resistance.
4. Low-Friction Sliders: Provides smooth, stick-slip free sliding surfaces for miniature machinery components, guide rails, and aerospace instruments.
5. High-Purity Equipment Shields: Offers non-reactive protective shields inside cleanrooms, semiconductor processing systems, and food packaging installations.
Performance Benefits of Ultra-Thin Fluoropolymer Rolls:
- Outstanding Pinhole Resistance: Advanced high-pressure resin pre-forming prevents gas micro-permeation through the thin polymer barrier.
- Excellent Tensile Elongation: High polymer crystalline retention allows the material to conform easily to irregular valve body faces and curved sealing surfaces.
- Excellent Bonding Receptivity: Pure resin baseline reacts predictably to sodium-ammonia surface etching treatments, ensuring high bonding strength to metal or rubber backings.
Direct Sourcing Logistics: Secure and Stable Supply Chain Management

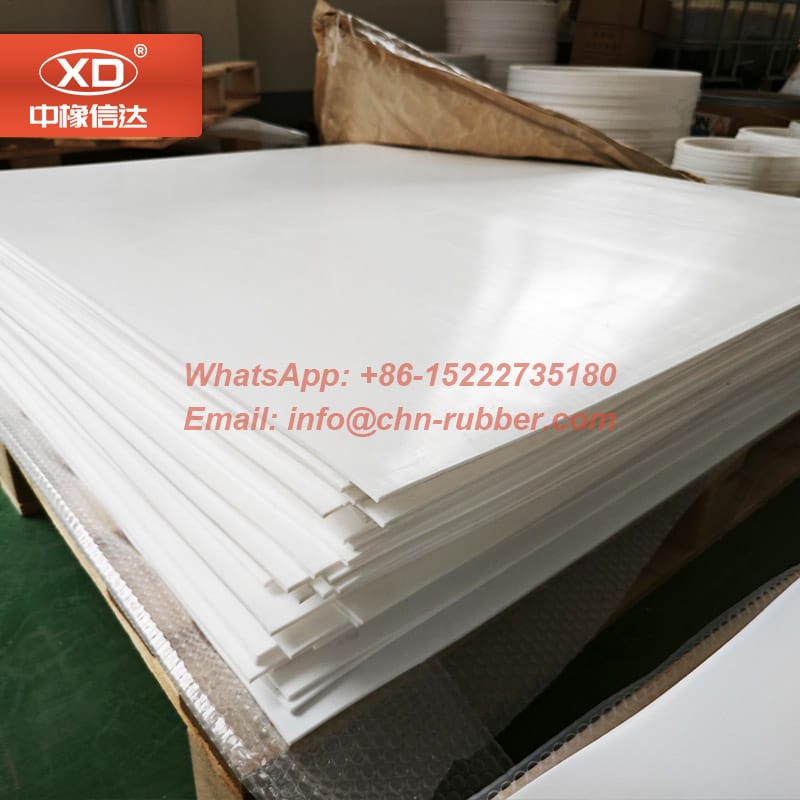

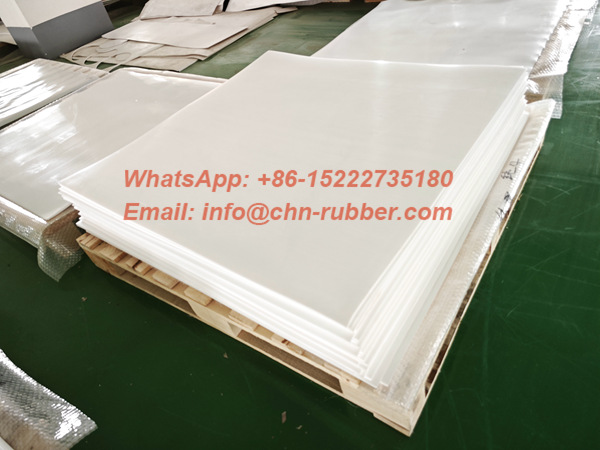

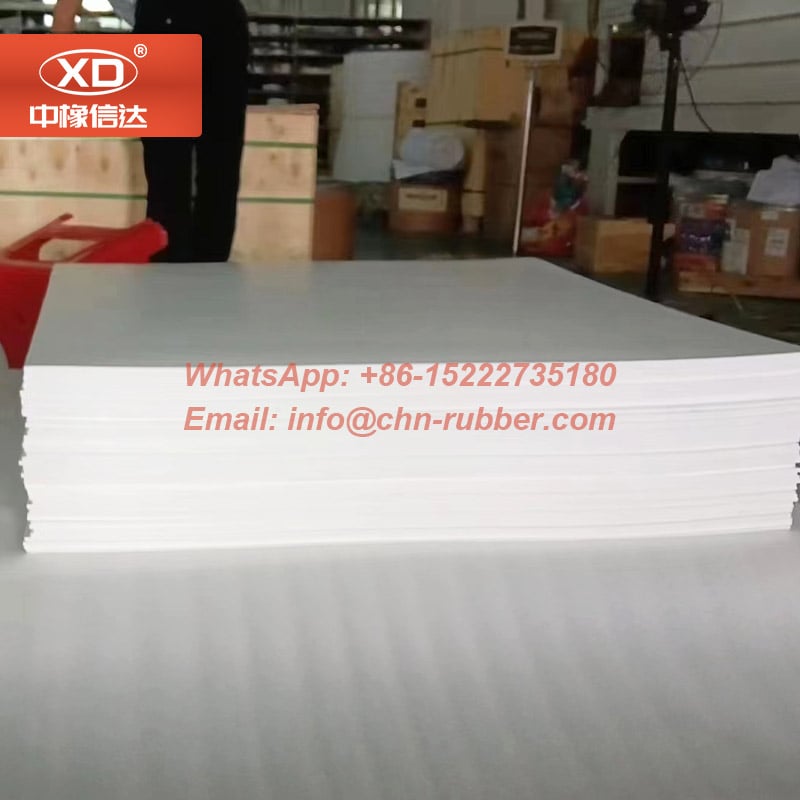

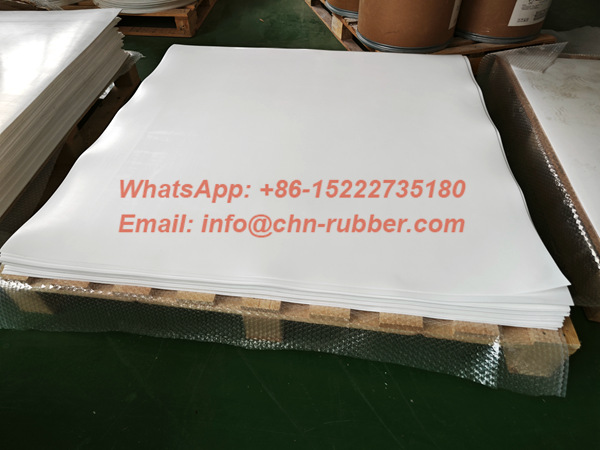

Display of Finished ProductsTransitioning your supply acquisition strategy directly to our advanced fabrication floor completely removes intermediate brokerage firms, trading agent markups, and uncoordinated third-party shipping steps. This lean commercial architecture gives your purchasing team direct access to base mill pricing, effectively protecting your corporate resale margins and strengthening your competitive standing during commercial bidding operations. Furthermore, because long-distance maritime shipping exposes sensitive rolls to shifting atmospheric humidity and container stresses, our logistics specialists secure every order inside reinforced export enclosures. This ensures your matrix arrives at your destination port with its structural network completely intact, ready for immediate field processing.
Optimie Your Thin-Gauge Insulation Lining Matrix Today
Protect your chemical installations and complex electronic hardware from unexpected operational breakdowns with factory-direct, pure thin-gauge rolls engineered for superior durability. Contact our international commercial sales desk today to define your precise width parameters, request technical material certificates, or secure a highly competitive wholesale quotation delivered straight to your port of destination.
