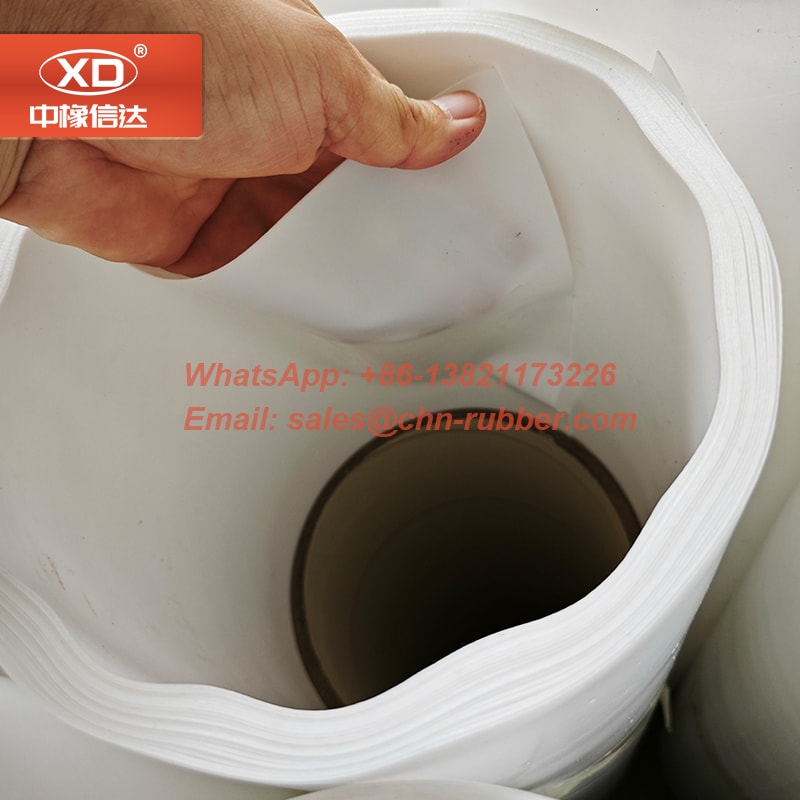

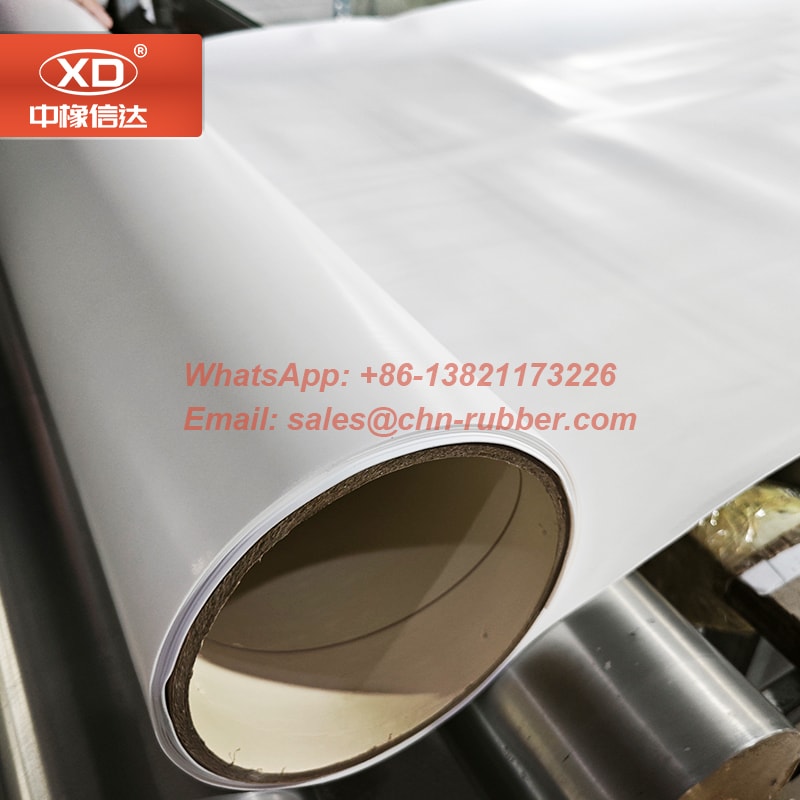

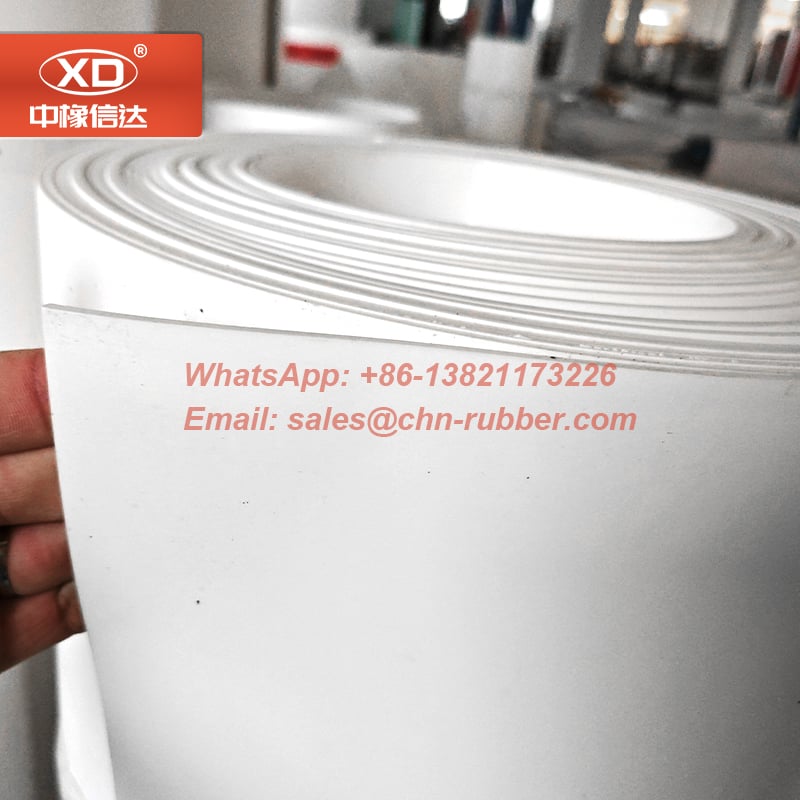

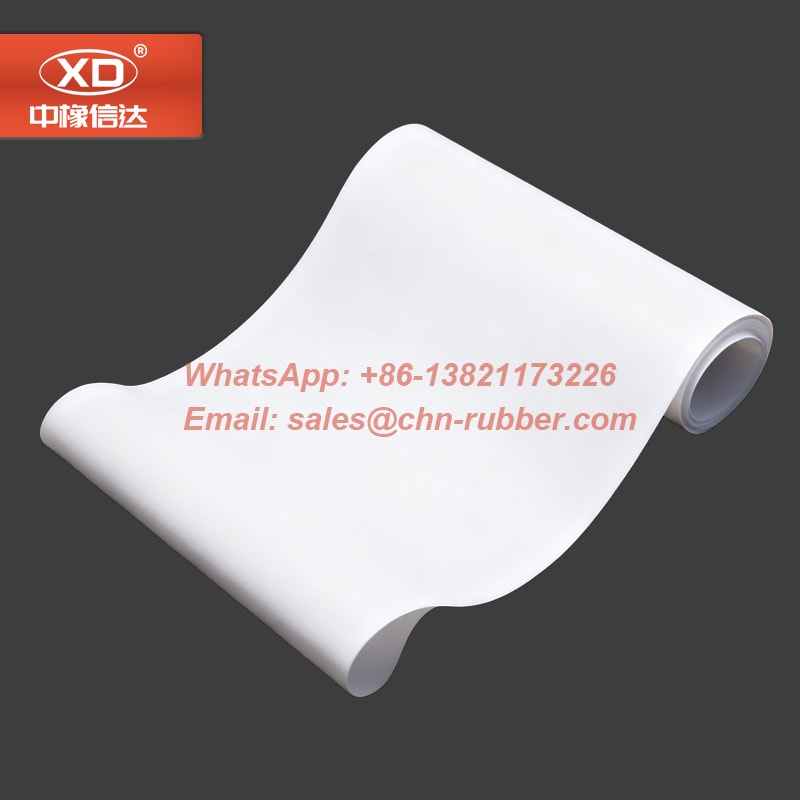

100% Pure PTFE virgin sheet turning and ePTFE
Crafted from 100% virgin PTFE resin, PTFE virgin sheets deliver unmatched purity, mechanical strength, and chemical inertness. With a non-contaminated structure and low surface energy, they ensure excellent insulation and non-stick performance in demanding environments.
Request a Sample and Quotation:
WhatsApp: +86 13821173226
E-mail: sales@chn-rubber.com
PTFE Virgin Sheet Data Sheet
| Skived Sheet | ||
| Test Item | Unit | Target |
| Density | g/cm³ | 2.1-2.3 |
| Tensile Strength | Mpa | ≥15.0 |
| Ultimate Elongation | % | ≥150 |
| Voltage | Kv/mm | 10 |
| Expanded Sheet | ||
| Compressiblity | % | 45+/-5 |
| Rebound Rate | % | ≥10.0 |
| Sealing Leakage Rate | cm³/s | ≤1.0x10‾³ |
| Density | g/cm³ | 0.7-0.9 |
PTFE Virgin Sheet Specification
| Skived Sheet | |||
| Thickness (mm) | Width (mm) | Length (mm) | |
| 0.5-6 | 10-2000 | Unlimited | |
| 7 | 10-1500 | 20000 | |
| 8 | 10-1500 | 17000 | |
| 9 | 10-1500 | 15000 | |
| 10 | 10-1500 | 14000 | |
| 12 | 10-1200 | 10000 | |
| Expanded Sheet - Width*Length*Thickness (mm) | |||
| 1500*1500*0.5 | 1500*4500*0.5 | 1800*1800*0.5 | 1800*5400*0.5 |
| 1500*1500*1 | 1500*4500*1 | 1800*1800*1 | 1800*5400*1 |
| 1500*1500*2 | 1500*4500*2 | 1800*1800*2 | 1800*5400*2 |
| 1500*1500*3 | 1500*4500*3 | 1800*1800*3 | 1800*5400*3 |
| 1500*1500*4 | 1500*4500*4 | 1800*1800*4 | 1800*5400*4 |
| 1500*1500*5 | 1500*4500*5 | 1800*1800*5 | 1800*5400*5 |
| 1500*1500*6 | 1500*4500*6 | 1800*1800*6 | 1800*5400*6 |
| 1500*1500*8 | 1500*4500*8 | 1800*1800*8 | 1800*5400*8 |
| 1500*1500*10 | 1500*4500*10 | 1800*1800*10 | 1800*5400*10 |
100% Virgin PTFE sheet. Special specifications can be produced according to specific requirements. Please consult our sales staff for specific specifications.

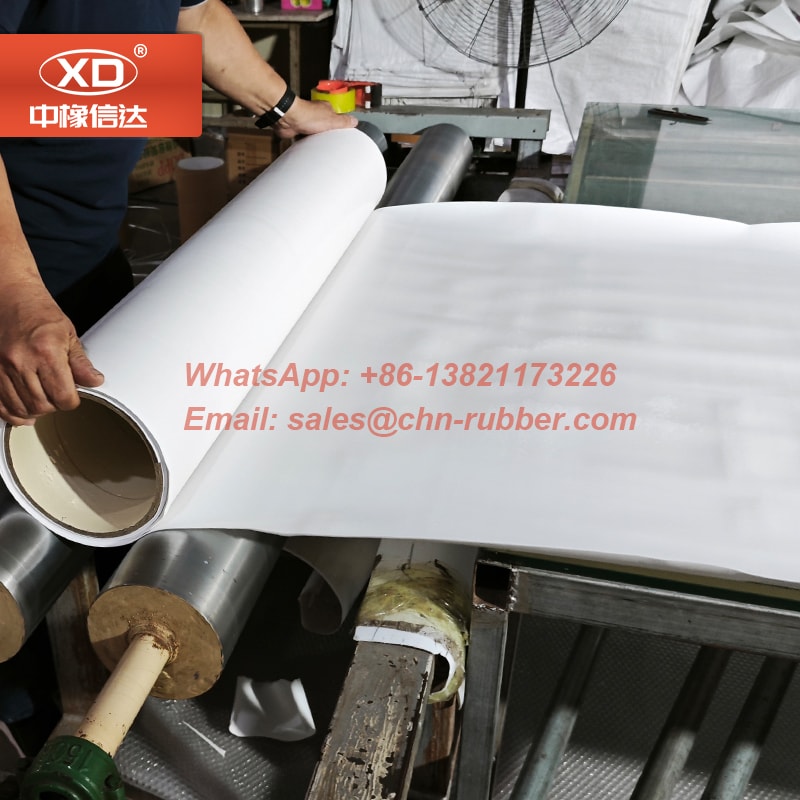

PTFE virgin sheets are produced through a precision molding and sintering process, guaranteeing uniform thickness and density throughout each plate. The use of 100% virgin PTFE material ensures superior resistance to acids, alkalis, and solvents, while maintaining excellent dielectric strength and temperature tolerance from -180°C to +260°C. Their smooth, low-friction surface makes them ideal for sealing, lining, and sliding applications where cleanliness and durability are crucial. These sheets are widely used in the chemical processing, electronics, pharmaceutical, food, and aerospace industries, where contamination-free performance is essential.
Custom sizes and machining options are available to meet specific operational needs, providing reliable material solutions for both static and dynamic environments.
