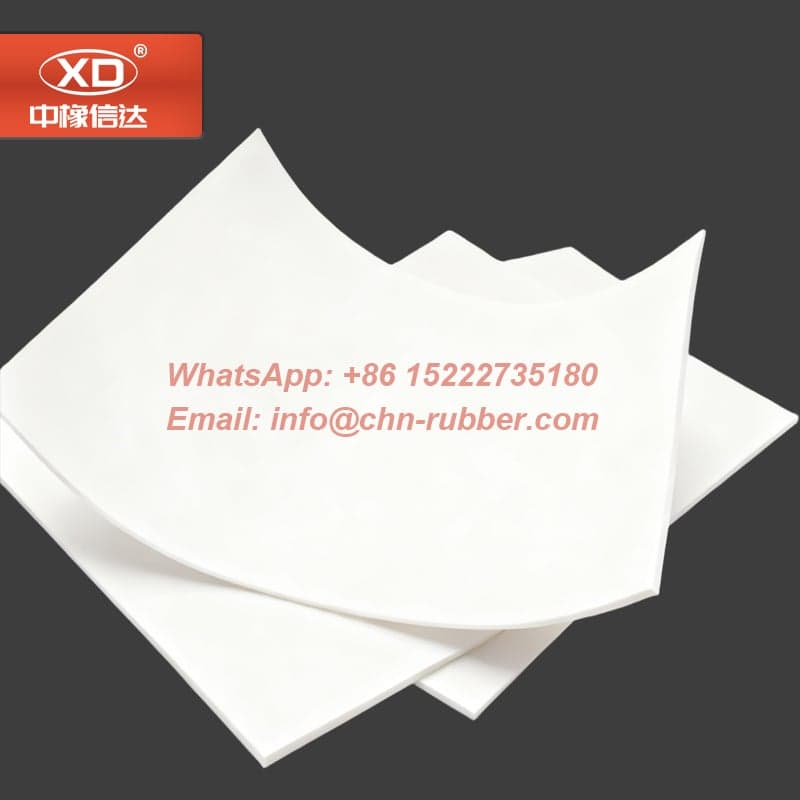

45+/-5% Flexible ptfe sheet for industrial gaskets

 Specification

1. 1. Thickness 0.5mm ~ 10mm
2. 2. Width 1.5m and 1.8m
3. 3. Length can be customized

The flexible PTFE sheet is a refined form of PTFE engineered through a controlled expansion technique that reorganizes the material into a multidirectional, fibrillated structure. This transformation produces a sheet that retains the chemical inertness of conventional PTFE while gaining far superior flexibility, compressibility, and recovery. Unlike dense skived PTFE, the expanded version adapts instantly to surface irregularities, making it highly effective in applications involving worn flanges, delicate coatings, glass-lined assemblies, or components that cannot tolerate high bolt stress.

 Key Characteristics

1. · Highly conformable structure for uneven or damaged flanges
2. · Full-spectrum chemical resistance identical to virgin PTFE
3. · Low bolt load requirement with stable long-term sealing
4. · Minimal creep and excellent recovery under cycling
5. · Non-aging, non-stick, and particle-free cutting behavior
6. · Versatile sealing solution for sensitive or precision installations

Machining and fabrication are straightforward: the sheet can be cut into rings, strips, or custom gaskets without producing fibers or particulates, ensuring clean integration into pharmaceutical, food, semiconductor, and chemical systems. Its ability to deform uniformly under minimal torque makes it suitable for FRP flanges, enamel-coated connectors, and aging equipment where bolt tension must be controlled to prevent structural damage.

In pipelines, reactors, mixers, compressors, vacuum chambers, and precision fluid-handling units, the flexible PTFE sheet delivers long-term sealing performance while maintaining the ultra-low friction, non-aging behavior characteristic of PTFE materials.
