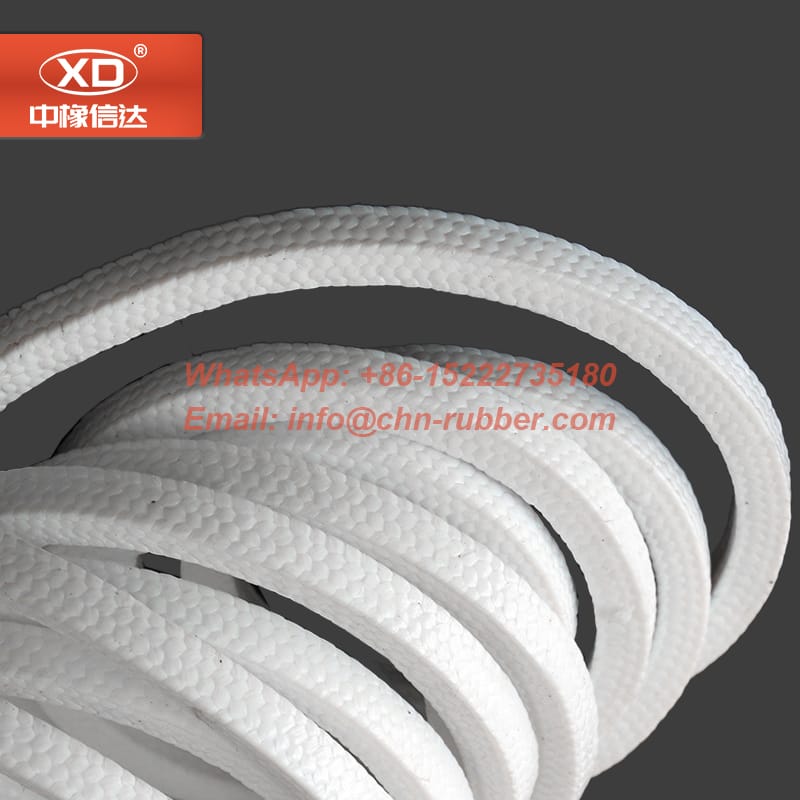

Butterfly and ball valve packing gland

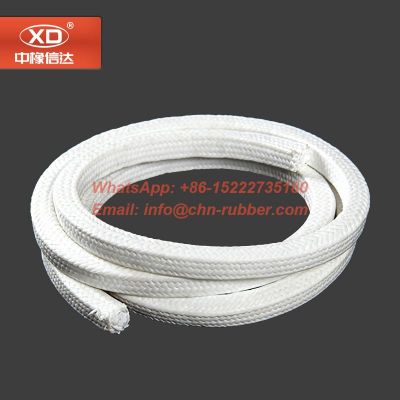

Valve gland packing material is specially engineered to deliver superior sealing performance in ball valve packing glands and butterfly valve packing applications. Constructed from high-quality fibers, PTFE, or graphite-reinforced blends, this packing conforms tightly to valve stems and stuffing boxes, providing a leak-proof seal even under fluctuating pressures, thermal cycles, and aggressive media. Its compressible structure accommodates stem movement, reduces operational torque, and minimizes wear, ensuring smooth valve operation and extended service life.

Manufactured to meet strict industrial specifications, this valve gland packing material is suitable for a wide range of valve types, including gate, globe, ball, and butterfly valves, across chemical processing, water treatment, power generation, and petrochemical industries. Resistant to steam, hot water, corrosive fluids, and solvents, the packing maintains its integrity and sealing efficiency under demanding conditions. Its self-lubricating properties reduce friction, prevent valve stem damage, and minimize maintenance intervals, making it an ideal solution for operators seeking reliable, durable, and high-performance valve sealing materials.

 Installation Guidelines for Valve Gland Packing

1. Preparation of Valve and Packing Area

• Ensure the valve stem and stuffing box are clean, dry, and free from debris, corrosion, or sharp edges.
• Inspect the valve stem for wear or scoring; replace if excessive damage is found.
• Confirm that the stuffing box dimensions match the valve gland packing material being installed.

2. Cutting and Shaping Packing Rings

• Cut the packing into rings or lengths according to the valve size. For circular valves, ensure the ring ends meet with a uniform gap for compression.
• Chamfer the edges slightly if necessary to prevent cutting or tearing during installation.

3. Installing Packing into the Gland

• Insert packing rings evenly around the stem inside the stuffing box, one layer at a time.
• Avoid twisting, stretching, or overlapping the material.
• For ball valve packing glands, start from the bottom layer; for butterfly valve packing, follow the valve manufacturer’s recommended orientation.

4. Compression and Gland Nut Adjustment

• Tighten the gland nuts gradually and uniformly, alternating sides to achieve even compression.
• Avoid over-tightening, which can increase stem friction and reduce valve life.
• The packing should provide a seal while allowing smooth stem rotation or linear movement.

5. Initial Operation and Break-In

• Slowly operate the valve a few cycles to allow the packing to seat properly.
• Re-check gland nut tension and adjust slightly if minor leakage is observed.
• After initial seating, minimal retightening may be required during the first hours of service.

 Maintenance Tips

1. 1. Inspect the packing periodically for wear, leakage, or deformation.
2. 2. Replace worn or hardened packing promptly to prevent stem damage.
3. 3. Use compatible valve gland packing material recommended for the operating media and temperature.
