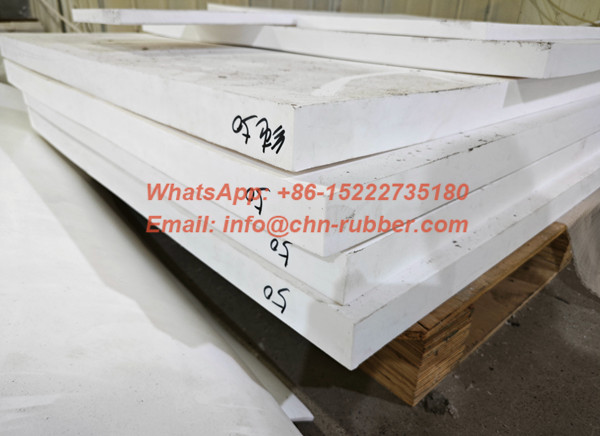

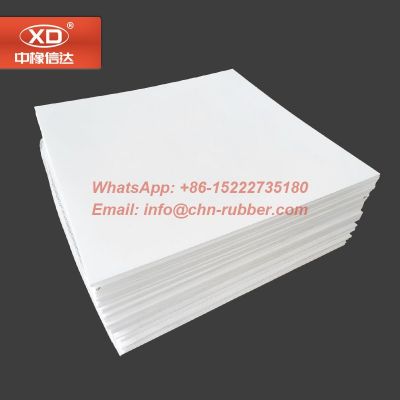

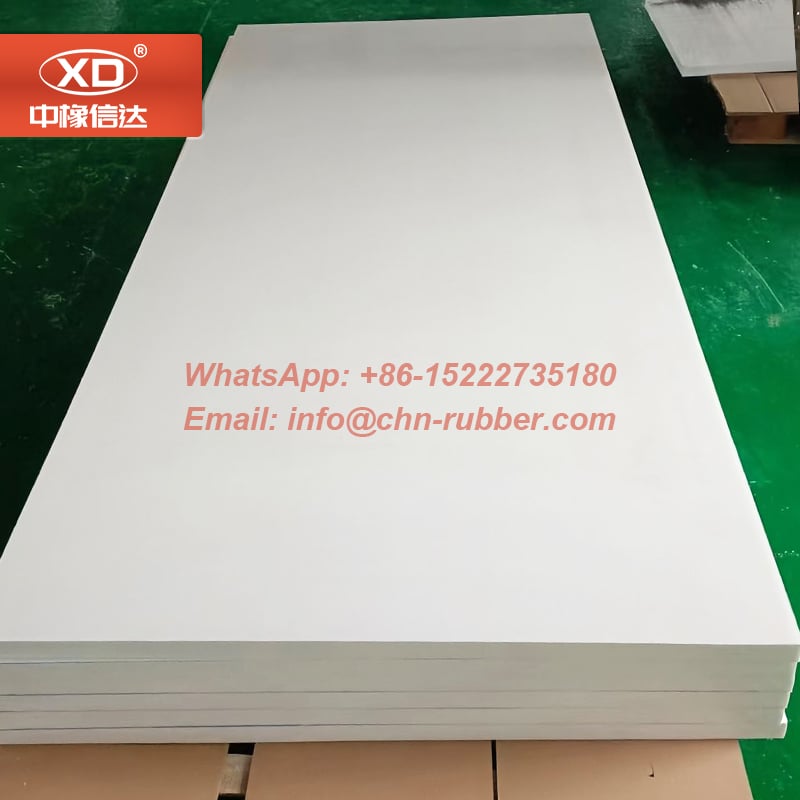

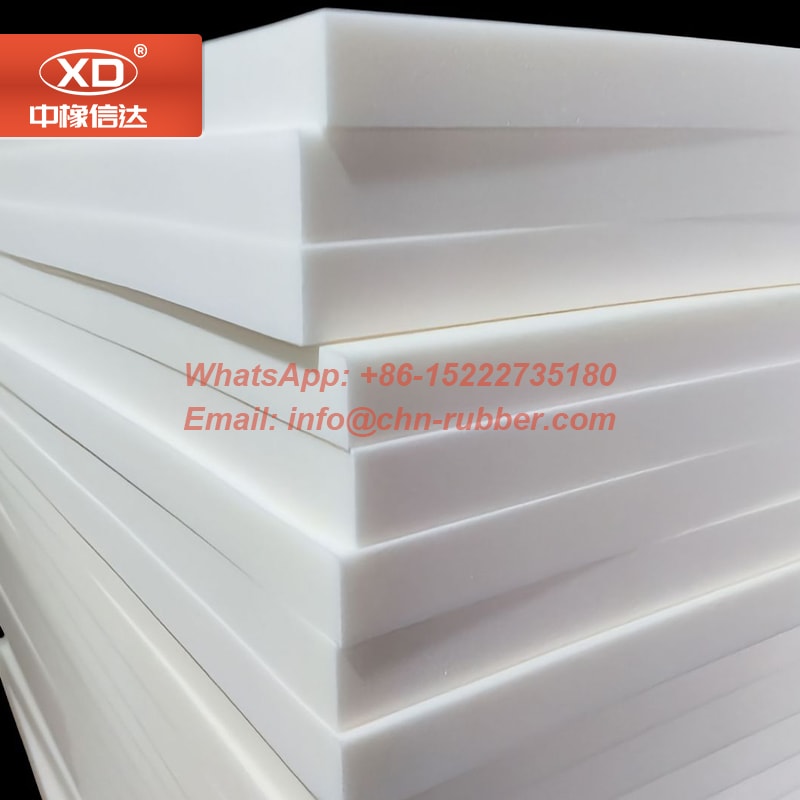

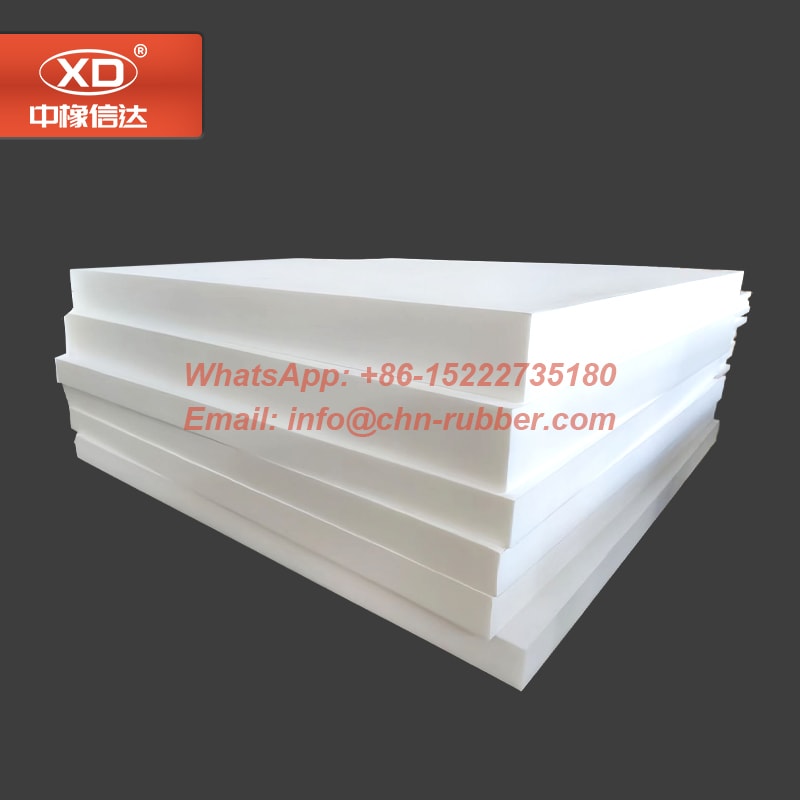

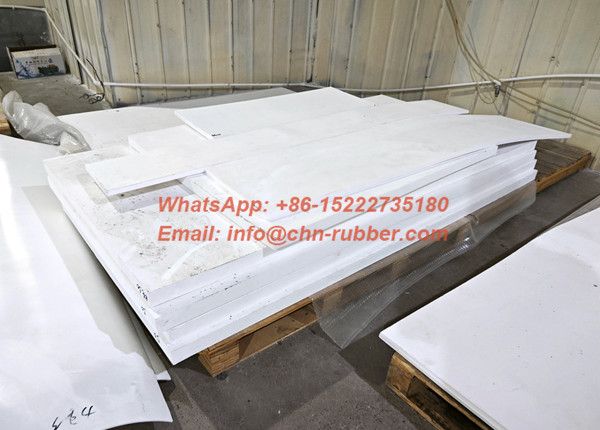

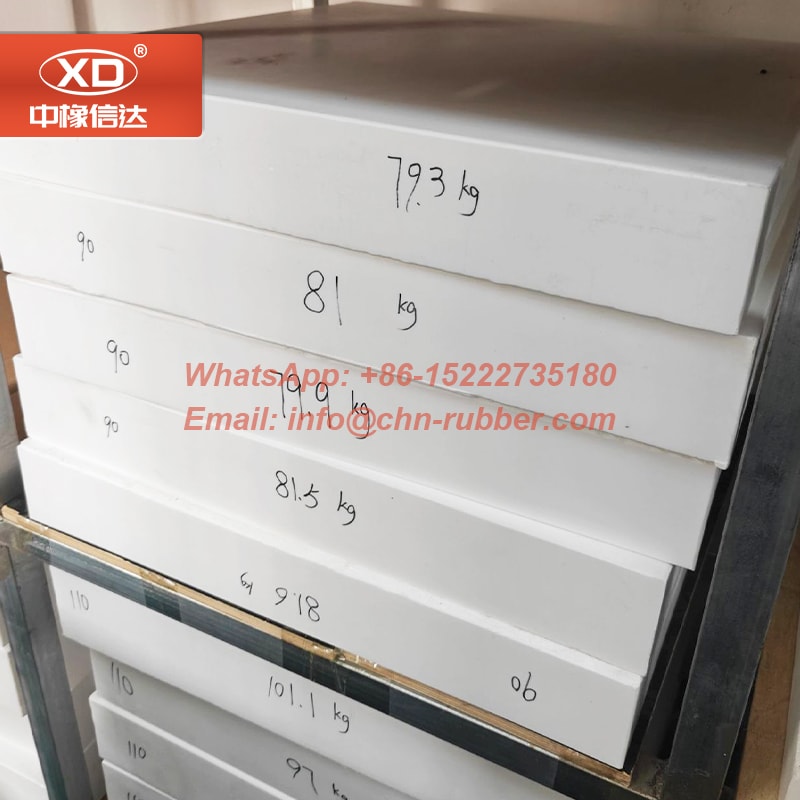

Heavy-Duty Compression Molded Polytetrafluoroethylene Sheet Block Stock
Machined Matrix Stability with High-Density Polytetrafluoroethylene Sheet Blocks
Our premium, industrial-grade polytetrafluoroethylene sheet offers an elite solution for engineering fabrication shops worldwide. Compression-molded under optimized hydraulic force and carefully crystallized in state-of-the-art sintering ovens, each massive plate guarantees a completely isotropic structure with excellent dimensional performance. No matter the mechanical structural application, our extensive selection of industrial ptfe sheet thickness metrics ensures you get clean cuts and precise finishes with minimal scrap rate.
- Isotropic Block Solidity: Advanced thermal holding cycles minimize internal stresses, preventing warping or curling during complex lathe routing.
- Engineered Profile Adaptability: We focus on critical heavy formats, offering a substantial ptfe sheet thickness range from 50 mm to 300 mm.
- Verified Source Quality: Partner directly with our factory floor to optimize your purchasing budget and ensure complete material traceability.
Kathery Cui (Sales 1)
Mobile Phone：+86 15222735180
WhatsApp: 8615222735180
E-mail: info@chn-rubber.com
Molded Polytetrafluoroethylene Sheet Material Parameters
| Technical Material Property | Measurement Unit | Target Specification Value |
| Material Matrix Density | g/cm³ | 2.10 - 2.30 |
| Ultimate Mechanical Tensile Strength | MPa | ≥ 15.0 |
| Elongation at Break Threshold | % | ≥ 150 |
| Standard Plate Dimensions | mm | 1200 x 1200 (Square Flat Profiling) |
| Available Slab Width Span | mm | 20 to 1200 |
Molded Gauge Sizing & Thickness Matrix
| Industrial Production Grade | Available PTFE Sheet Thickness | Dimensional Finish Format |
| Heavy-Duty Machinery Slab | 50 mm to 150 mm | 1200mm x 1200mm Stock Blocks |
| Extreme High-Load Block Stock | 151 mm to 300 mm | Custom Geometries / Square Blocks |
*Customized Milling Notice: Specialized geometric sizing configurations, precise thickness planing, and specific shapes are fully supported upon industrial submission.
Advanced Density via Hydraulic Block Compression Molding
Molded Solid Fluoropolymer Slab ProfileFollowing compression, these dense sheets undergo a precisely controlled sintering process. Long, gradual heating and cooling ramp cycles allow the resin particles to bond completely, resulting in a solid, stable plate with low internal material stresses. This uniform quality prevents structural splitting, warping, or surface flaking when routing heavy pump components or precise electrical insulators.
Engineered Deployment Across High-Stakes Processing Frameworks
Calibrated Thick-Gauge Fluoropolymer SlabsOur massive ptfe sheet thickness range (50mm up to 300mm) allows workshop operators to carve out structural sliding pads for large bridges, fabricate heavy valve seats for pipeline assemblies, and turn out large electrical insulators for high-voltage commercial installations. The non-stick surface profile provides an incredibly low friction coefficient, which prevents machinery binding and minimizes heat generation during high-speed, continuous mechanical operation.
Why Global Procurement Officers Choose Hebei Xinda (XDPTFE):
- Direct Mill Cost Benefits: Sourcing directly from our primary manufacturing plant removes intermediate trading groups, protecting your project margins and enhancing bidding advantages.
- 15 Years of Certified Export Experience: Our international logistics desk ensures smooth technical material submittals, strict customs documentation, and professional maritime booking.
- Reinforced Maritime Craters: Heavy molded slabs are securely secured in heavy-duty export master wooden framing to prevent edge damage and surface scratching during cross-border sea shipping.
Technical Support Knowledge Base (FAQ)
Q1: What are the primary machining advantages of choosing a molded polytetrafluoroethylene sheet over thinner skived alternatives?
A: Molded slabs provide exceptional dimensional flatness and low internal material stress compared to rolled profiles. Thinner skived alternatives can retain rolling stresses that lead to warping during mechanical machining. Our heavy compression block molding ensures that when you carve deep channels, blind holes, or complex bevels, the workpiece stays perfectly flat, retaining strict tolerance accuracy.
Q2: Can your manufacturing facility provide customized ptfe sheet thickness dimensions beyond the standard listed matrix?
A: Yes, absolutely. While our catalog focuses on standard configurations from 50 mm to 300 mm, our facility houses specialized large-diameter molds. We can customize the specific ptfe sheet thickness profile, pre-cut geometric blanks, or square slab formats according to your technical drawings, reducing material waste and optimizing your machining setup.
Optimize Your Mechanical Machining Yield Rates Today
Protect your heavy mechanical guide rails and chemical storage systems from premature wear using compression-molded plates designed for challenging industrial conditions. Contact our international sales desk today to confirm your specific gauge parameters, request material safety datasheets, or secure an optimized wholesale price quotation delivered directly to your destination port.
