Commercial Grade PTFE Rectangular Bar & Square Rod | Cost-Effective Supply
Manufactured as cost-effective commercial-grade stock, our PTFE rectangular bars offer excellent self-lubricating performance and chemical resistance at an economical price. Precision-sawn with flat surfaces, they are ideal for cost-sensitive machinery guide rails, wear strips, and sliding blocks.
Request a Sample & Quotation:
WhatsApp: +86-15222735180
Email: info@chn-rubber.com
Economical Industrial Grade & Cost-Effective Stock

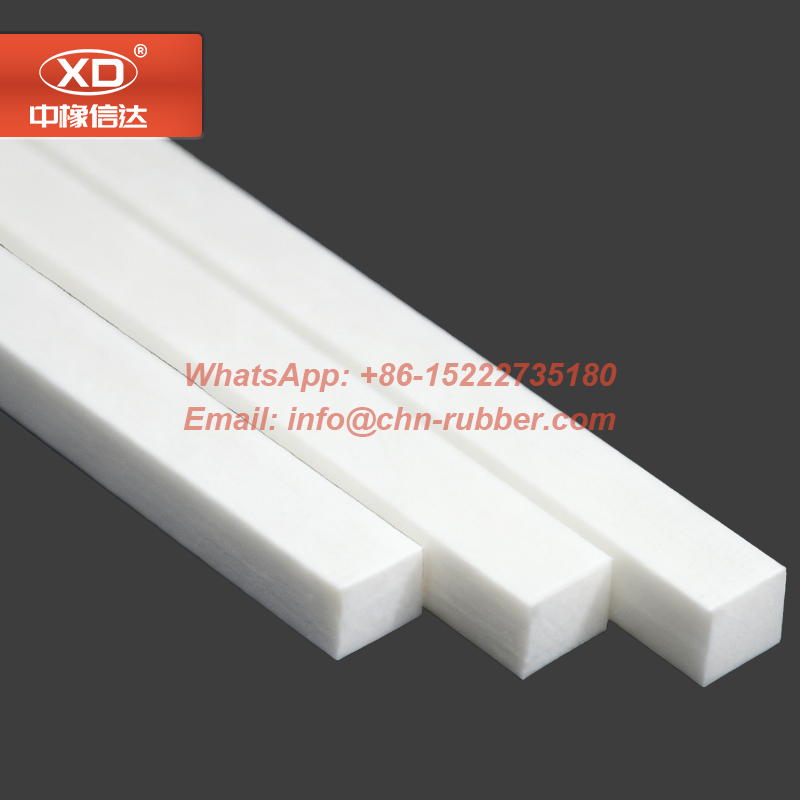

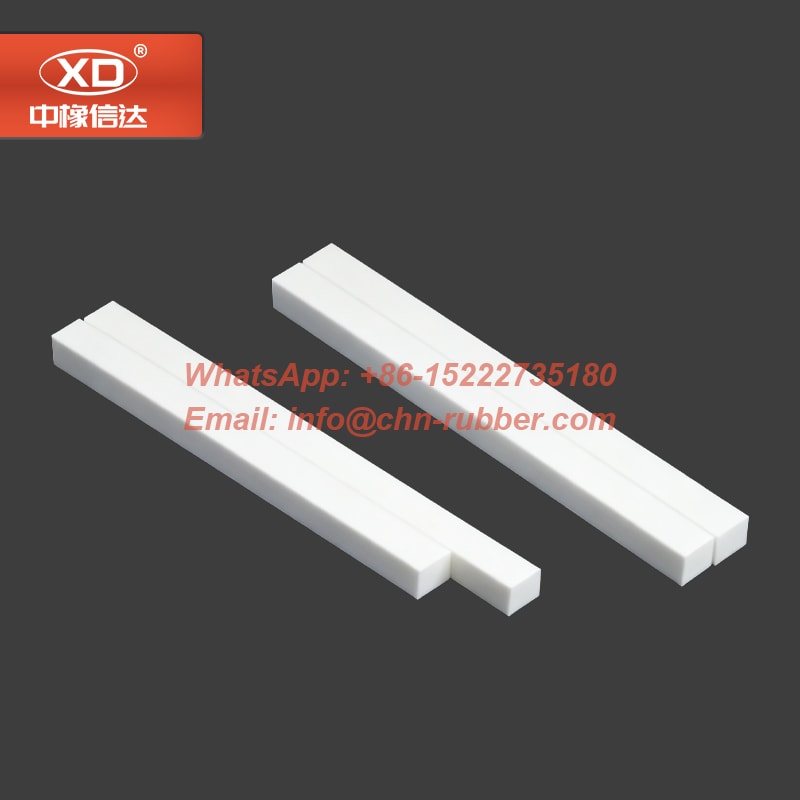

Industrial PTFE Rectangular Bar & Square Rod Manufacturer
Hebei Xinda manufactures high-value commercial-grade ptfe rectangular bar and ptfe square rod profiles engineered specifically for cost-sensitive machinery builders and general industrial maintenance. Formulated from premium reprocessed fluoropolymer blends, these square and rectangular profiles deliver significant cost advantages over virgin stocks while preserving essential performance traits—including an extremely low coefficient of friction, high temperature resistance, zero moisture absorption, and excellent chemical stability.
Substantially reduces raw material costs for non-critical mechanical parts, guide tracks, and general sliding components.
Sawn directly from molded blocks to eliminate curling stress, ensuring bars remain flat during milling and drilling.
Flat 90° sides allow fast, secure vice clamping without specialized chuck fixtures or round-bar collets.
Standard Dimensions & Manufacturing Range
| Profile Parameter | Manufacturing Capacity & Range |
|---|---|
| Square Rod Cross-Sections | 100 x 100 mm (Custom square sizes upon request) |
| Rectangular Bar Widths | 15 mm to 300 mm |
| Thickness Range | 10 mm to 30 mm |
| Standard Bar Lengths | 90 mm, 300 mm, 500 mm, 1000 mm (Custom cut lengths available) |
| Surface Finish | Precision-sawn flat edges / Molded smooth surfaces |
| Material Grade | General Commercial Reprocessed Grade (Off-White / Light Grey) |
Why Choose Molded & Sawn Rectangular Bars Over Slitted Sheets?
Many workshops try cutting thin skived sheets into narrow strips to form guide rails. However, sawn rectangular bars manufactured from molded blocks offer superior mechanical performance for structural parts:
| Feature | Commercial PTFE Rectangular Bar | Slitted PTFE Sheet Strip |
|---|---|---|
| Internal Stress | Stress-relieved; stays flat after machining | Retains residual curling stress; warps easily |
| Edge Squareness | Clean 90° right angles for vice clamping | Beveled or rounded edges; difficult to clamp firmly |
| Material Scrap Rate | Near zero scrap; cut directly to final dimensions | Higher off-cut scrap during width slitting |
| Cost Efficiency | High cost-performance for industrial maintenance | Requires extra labor to plane flat for thick rails |
Machining & Fabrication Guidelines
- ♢ Milling & Slotting: Use sharp carbide tooling with high rake angles and fast feed rates to prevent material heating. Flat faces clamp firmly in standard machine vices for precise keyway cutting.
- ♢ Drilling & Counterboring: When drilling mounting holes along the bar length, use slow drill speeds and clear chips frequently to prevent heat buildup and expansion.
- ♢ Pre-Chamfered Edges: Optional pre-machined edge chamfers can be provided upon request, allowing immediate installation onto conveyor frames and slide beds without manual deburring.
Typical Industrial Applications
Economical replacement liners for lathe bed ways and sliding tables, eliminating stick-slip chatter.
Durable, low-friction side guides and support tracks for packaging and material handling conveyors.
Non-conductive mounting blocks and rigid insulating spacers in industrial power distribution panels.
Machined rectangular scrapers for wiping residual chemicals in mixing tanks and processing channels.
Frequently Asked Questions
By utilizing controlled reprocessed fluoropolymer resins and optimizing our block sawing methods, we reduce raw material costs while delivering reliable low-friction mechanical performance for non-critical industrial parts.
Yes. Our PTFE rectangular bars provide outstanding resistance to "stick-slip" and smooth movement, serving as economical guideway liners for machine tool bed maintenance and industrial sliding assemblies.
