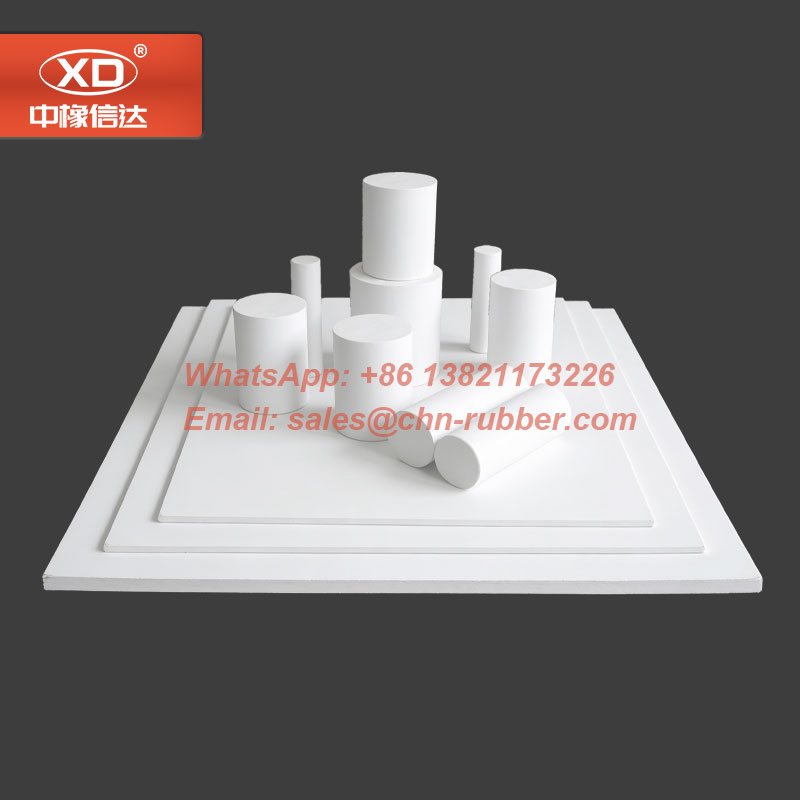

15% 25% Glass filled PTFE sheet rod and sleeve
15 glass filled PTFE and 25 glass filled PTFE materials, available in sheet, rod, and sleeve formats for demanding industrial applications. Glass fiber reinforcement significantly enhances the mechanical strength and dimensional stability of virgin PTFE, making it suitable for high-load and wear-resistant environments.
- Sheet | Rod | Sleeve
- Enhanced Strength & Wear Resistance
- Reduced Creep Under Load
- Industrial-Grade Engineering Material
Manufactured in accordance with relevant ASTM testing methods for hardness, tensile strength, and density evaluation.
Request a Sample and Quotation:
WhatsApp: +86 13821173226
E-mail: sales@chn-rubber.com
15% glass filled PTFE provides improved compressive strength and reduced creep compared to virgin PTFE, while maintaining good chemical resistance and low friction properties.
Recommended for:
- Industrial gaskets
- Pump components
- Structural insulation parts
- Medium-load bearing surfaces
25% glass filled PTFE offers higher stiffness and better wear resistance, suitable for applications requiring greater dimensional stability under load.
Recommended for:
- Heavy-duty bearing pads
- Wear rings
- Mechanical support components
- High-pressure sealing systems
Compared to virgin PTFE:
Available Forms
We supply:

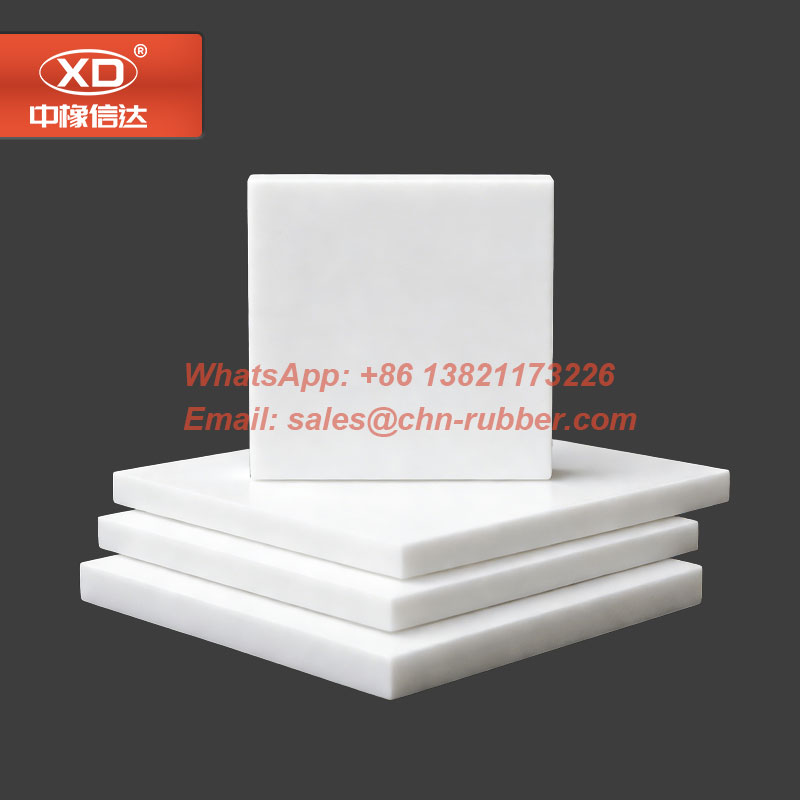

- Glass filled PTFE sheets (molded plates & skived sheets)

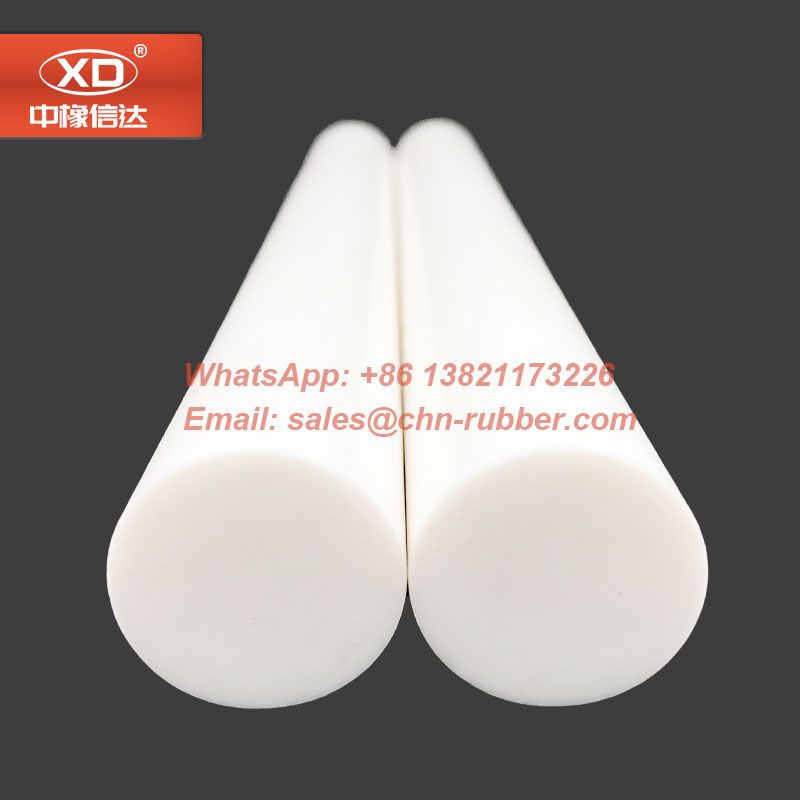

- Glass filled PTFE rods (molded rods & machined bars)

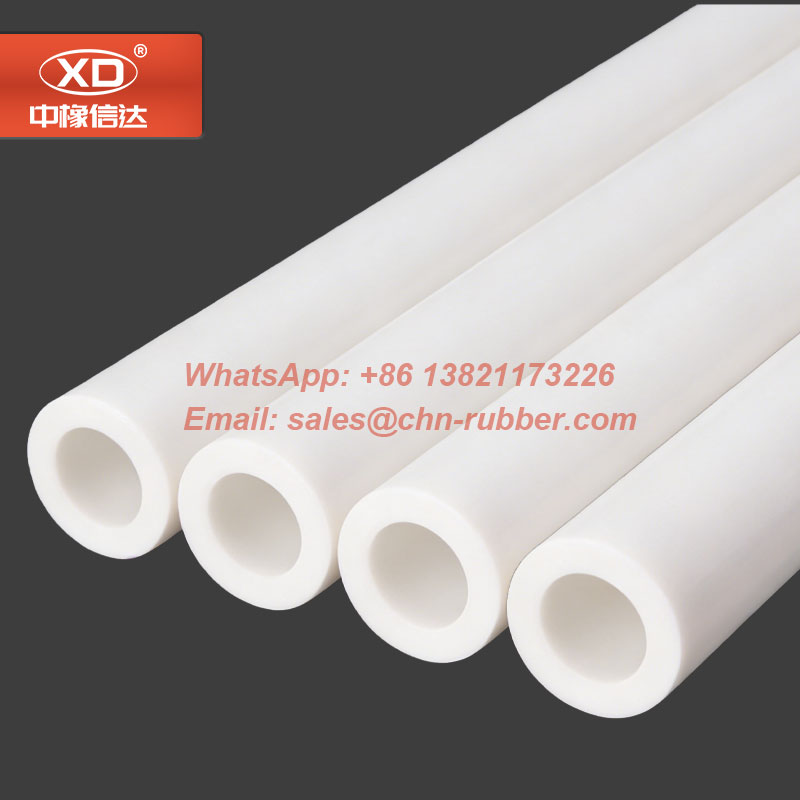

- Glass filled PTFE sleeves / tubes
Custom dimensions and machining services are available upon request.
