Industrial PTFE Gasket Sheet Procurement Guide
Selecting the right ptfe gasket sheet is critical for sealing reliability in chemical processing, power generation, food production, and fluid handling systems. Compared with rubber or fiber gasket materials, PTFE offers superior chemical resistance and long-term thermal stability, making it suitable for demanding industrial environments.
What Is PTFE Gasket Sheet?
PTFE gasket sheet is manufactured from Polytetrafluoroethylene, a high-performance fluoropolymer known for its chemical inertness and wide operating temperature range.

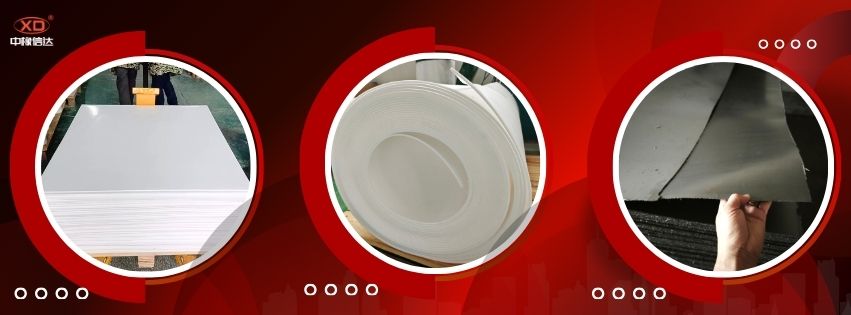

Plate → Sheet (Roll) → Filled →
Key characteristics include:
- Resistance to most acids, alkalis, and solvents
- Continuous service temperature from –200°C to +260°C
- Low friction, non-stick surface
- Non-aging and extremely low water absorption
Because of these properties, ptfe gasket sheet is widely used in corrosive and high-purity systems.
Types and Application Matching
PTFE gasket sheets are typically available as:
Molded Sheets – Dense structure, suitable for medium to thick dimensions and standard flange gasket cutting.
Skived Sheets – Available in large sizes or rolls, ideal for wide-area applications and thinner thickness requirements.
Filled PTFE Sheets – Reinforced with glass fiber, graphite, or carbon to improve compressive strength and reduce creep under bolt load. Recommended for higher-pressure systems.
Material selection should always match operating pressure, temperature, and media conditions.
Procurement Checklist
When sourcing ptfe gasket sheet, verify:
- 1. Virgin material grade (avoid excessive reprocessed content)
- 2. Density range (typically 2.10–2.30 g/cm³)
- 3. Thickness tolerance consistency
- 4. Mechanical test data (tensile strength, compression behavior)
- 5. Surface quality (no voids, cracks, or delamination)
- 6. Low-cost materials often compromise long-term sealing reliability.
Main Industries Using PTFE Gasket Sheet
Stable demand comes from:
- Petrochemical plants
- Power generation facilities
- Water treatment systems
- Food and pharmaceutical processing
- Industrial OEM manufacturers
As industrial safety and corrosion standards continue to rise, ptfe gasket sheet remains a reliable sealing solution globally.
When purchasing ptfe gasket sheet, prioritize material stability and supplier transparency over short-term cost savings.
